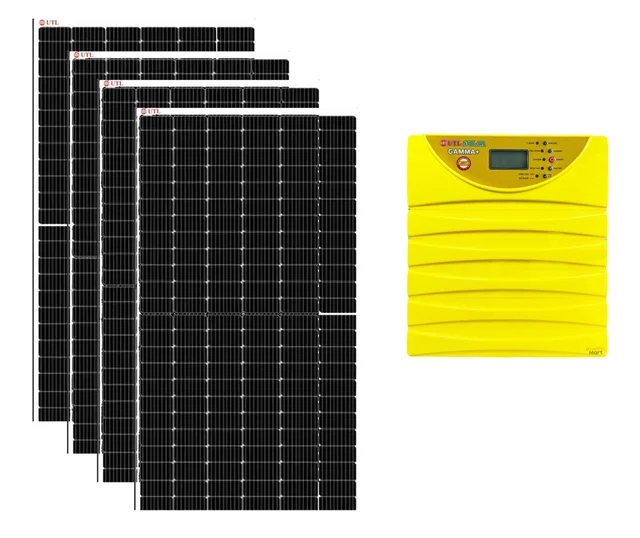

UTL Solar Power Generating System (590W Topcon Bifacial Solar Panel - 4 No., Gamma+ 3400 Li-ion 3KVA 24V MPPT Solar Lithium PCU)

TOPCON SOLAR PANEL

UTL solar panels are the latest technology and most innovative solar panel. A solar photo-voltaic panel is a composition of solar voltaic cells, well-arranged together in an aluminium frame and covered with high quality glass. They absorb the sun’s ray and turn them into electricity that can be fed in home appliances as well as utility grids. UTL solar panel are next-generation solar panels, manufactured by using premium quality A-grade solar cells. These solar cells are slice cut from a block of silicon, consisting of a number of crystals with a speckled reflective appearance. The thickness of these slices is clearly visible. Our Topcon Bifacial solar panel 590 watt is a very economical solar product and are more suitable for Indian environmental conditions. Half Cut Cell

• Topcon Bifacial Half Cut Cells
  Half Cut Cells are More Physically durable,
  More resistant to cracking reduce Power Loss
  increase module efficiency (mono- perc up to 20.95 %)
• MBB instead of 16BB MBB
  Technology decreases the distance between bus bars and
  finger grid line which is benefit to power increase.
• Higher lifetime power yield
  2.0% first year degradation,
  0.55% linear degradation
• Strengthened Mechanical Support
  5400 Pa snow load, 2400 Pa wind load

SOLAR PCU

UTL Gamma+ GPP 3400 Li-ion 3 KVA 24V rMPPT Solar Pure Sine Wave PCU Comes with Great Exciting Features:

★Multi Coloured LCD Display shows PCU Working Parameters

★Grid Charging Enable/Disable

★Inverter and UPS Mode (For IT Load)

★PCU, Hybrid and Smart Modes

★ Lithium Battery Support

Advanced Technology makes this True MPPT based PCU with Sleek and aesthetic Design makes it the most efficient and Long lasting PCU.

This PCU is designed to maximize the use of Solar Power. When the batteries are charged from Solar the PCU Disconnects Grid/Mains & let the Load run on Solar, as per the User Preferences it has three modes:

1. SMART (Default) – (Solar>>Battery>>Grid) where Power Cut is less than two Hours

2. PCU – (Solar>>Battery>>Grid) Recommended for Rural or Village area to save Battery Backup for Night

3. Hybrid - Load/Grid>>Solar>>Battery

3 Stages Battery charging to Maintain Maximum Battery Health (Boost, Absorption, Float)

Country of Origin
Bharat

Manufacturer
Fujiyama Power Sytems Pvt. Ltd.
53A/6 Rama Road, Industrial Area, Near NDPL Grid Office, New Delhi - 110015.
