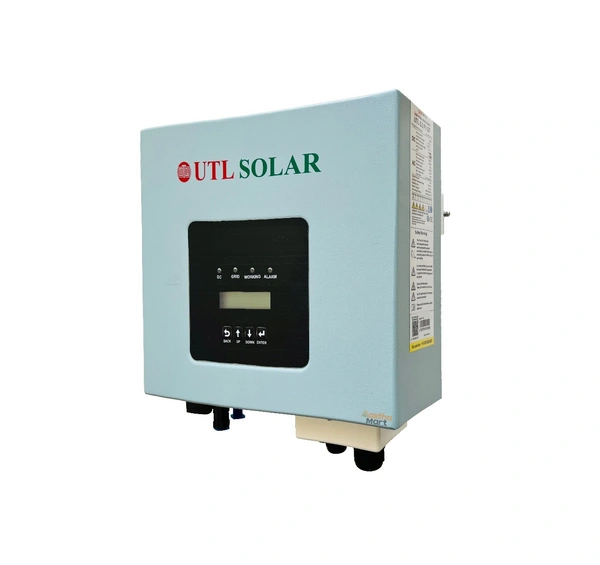

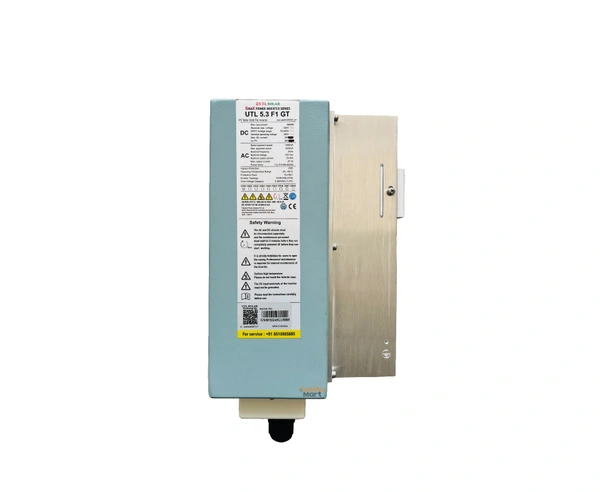

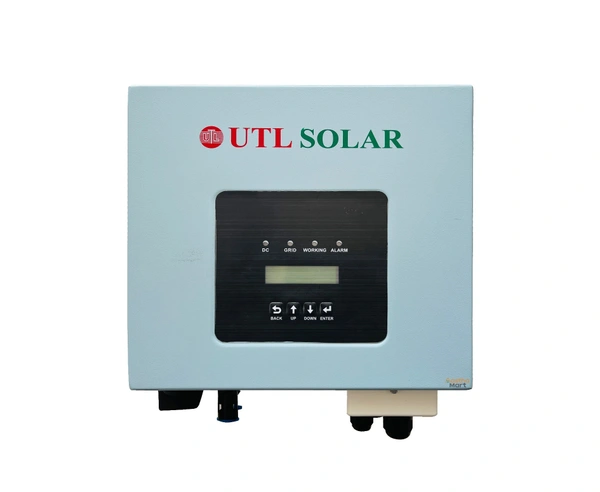

UTL Gigax 5.3KW Single Phase Grid Tie Solar Inverter

Model
UTL 5.3KW F1 GT

Maximum DC Input Power
6800W

Maximum DC Input Voltage
550V

MPPT Voltage Range
70-500V

Maximum DC Input Current
20A

Rated Output Power
5.3KW

Maximum Active Power
5.83KW

Nominal Frequency
50Hz

Nominal Output Voltage
230V

Operating Phase
Single Phase

Rated AC Grid Output Current
23.04A

Maximum AC Output Current
25.3A

Output Power factor
0.8 Leading to 0.8 Lagging

MPPT Efficiency
>99%

DC Reverse Polarity Protection
Yes

AC Short Circuit Protection
Yes

AC Output Overcurrent Protection
Yes

Output Overvoltage Protection
Yes

Temperature Protection
Yes

Integrated DC Switch
Yes

Remote Software Update
Yes

Remote change of Operating Parameters
Yes

Surge Protection
DC Type II / AC Type II

Size (mm)
330Wx323Hx190D

Weight
7.5KG

Topology
Non-Isolated

Ingress Protection
IP65

Operating Temperature
-20~60°C

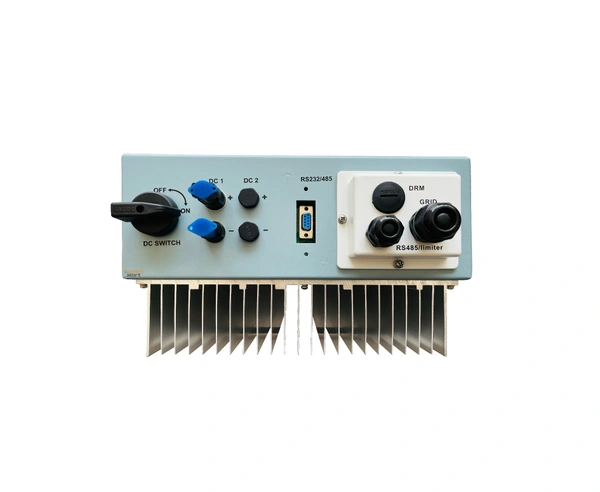

DC Connection
MC-4 Mateable

AC Connection
IP65 Rated Plug

Display
LCD1602
