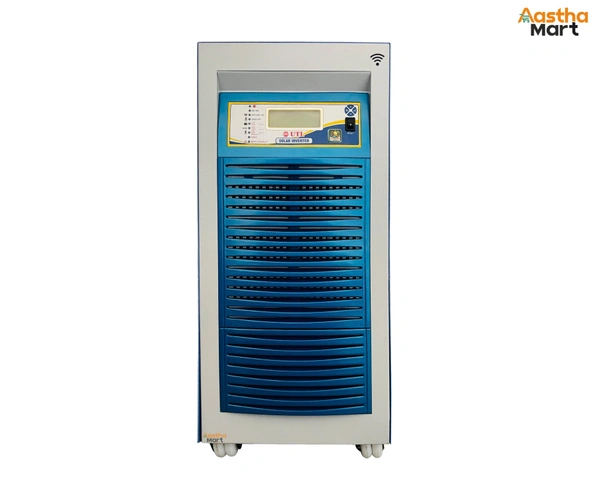

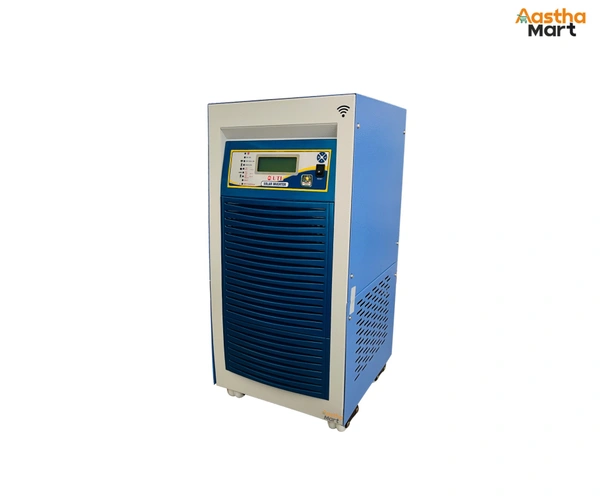

UTL Alfa Pro 5KVA 48V rMPPT Solar PCU

Alfa+ Solar PCU 5kVA/48V that is mainly used in schools, industries petrol pumps, banks and also in home. It continuously monitor battery and solar voltage as well as grid and output voltage with their current

PCU (Power Conditioning Unit) is an integrated unit that consists of a grid charger, inverter, MPPT Solar Charger. It continuously monitors Battery and Solar voltage as well as Grid and Output voltage with their currents. MPPT based Solar charger extracts the maximum power from the solar panels whereby it increases the efficiency of the system. MPPT charger has multistage charging which maintains the battery charging voltage such that it increases the lifespan of the battery.
Alfa+ Solar PCU 5KVA 48V is a Model of Power Conditioning Unit (PCU) which uses Solar  (primary) and  Grid (secondary), to charge the batteries. Since the usage of power from the grid is secondary, grid power is only used when solar energy is not present and the battery voltage level reduces to 11.5V/Battery (Default 11.5V, Configurable).
Grid power is also needed when solar power generation is less and the battery voltage is reduced to 11.5V/Battery (Default 11.5V, Configurable)

• Battery selection mode
• Operating Mode Selection
• LCD display with Energy Meter and Data Logging (optional)
• Pure sine wave
• User-configurable by LCD

Battery selection mode

In UTL’s Alfa PCU you have a great feature that is battery selection mode by this we can select any type of battery as per requirement i.e Flat plate/Tubular/SMF/Lead-acid Battery and can set charging voltage and charging current as per requirement.

Operating Mode Selection

• PCU Mode – Priority Solar →Battery → Grid
• Smart Mode -Priority Solar → Grid → Battery
• Hybrid Mode – Priority for load Grid →Solar →Battery, Priority for battery charging    Solar → Grid

Pure sine wave

The output of the UTL’s Alfa PCU is a pure sine wave. and it operates your appliances friendly.

User-configurable by LCD

User-friendly calibration settings:-

You can change the below settings of Alfa PCU by itself like,
Configurable Grid Reconnect setting
Configurable Battery Low cut setting
Configurable Grid low cut/High cut setting

User-friendly operational settings:-

No-load shut down Enable/Disable.
Grid charger Enable/Disable.
IT Load Enable/Disable.
Input AC source Grid/Genset.

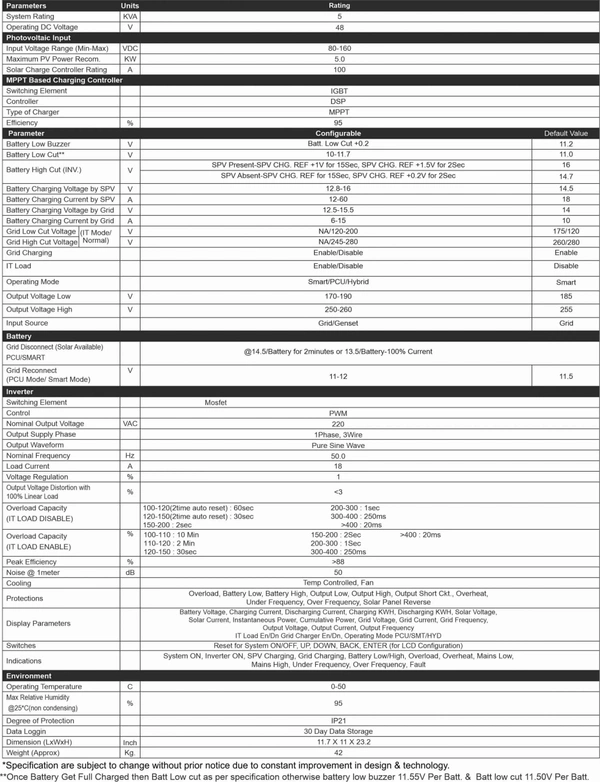

• DSPic-based Pure Sine Wave Design.
• Inbuilt in 100A rMPPT IGBT Charge controller (30% more efficient)
• 5000 Watt Solar Panel support.
• VOC range 80-160V
• Maximum preference to Solar Power.
• AC Output 220V  18A
• Pure Sine Wave

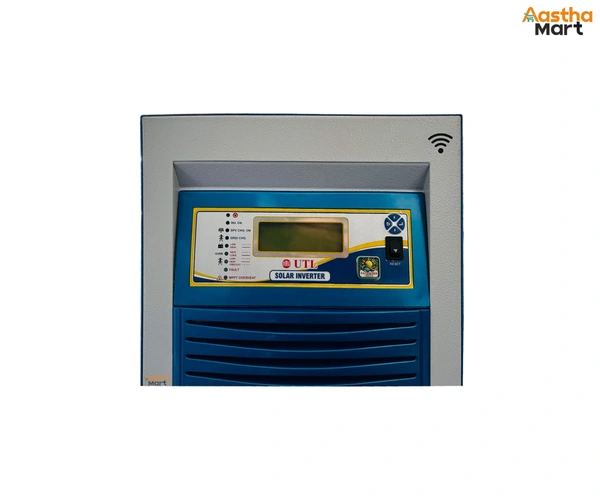

• User friendly LCD Display with all AC & DC Parameter Configurable by Display Switches & Digital LCD (20X4).
• User Friendly Control :- Output Voltage, Chg. Voltage – SPV/Grid, Chg. Current – SPV/Grid, Grid Reconnect, Batt. Low.
• Priority-based working modes – Smart/PCU/Hybrid (for saving energy & money).
• Grid Charging & IT Load – Enable/Disable.
• Reverse AC Voltage Protection.
• 30 Days Data Storage
• Inbuilt Wifi.




  Country of Origin	India
  Manufacturer	Fujiyama Power Sytems Pvt. Ltd. 53A/6 Rama Road, Industrial Area, Near NDPL Grid Office, New Delhi - 110015
