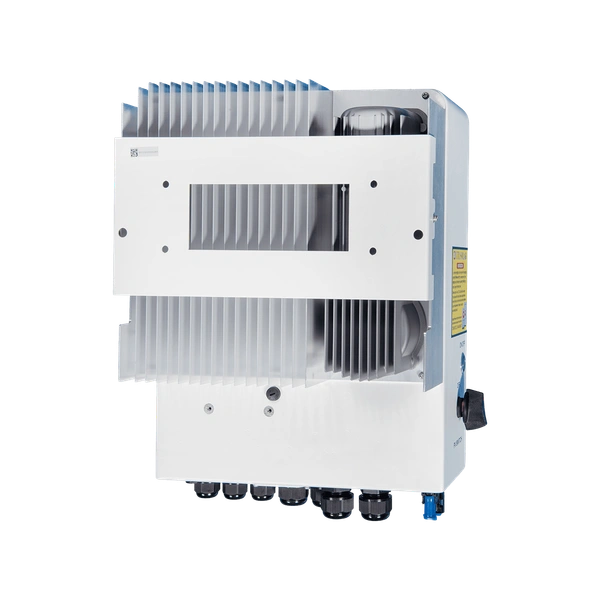

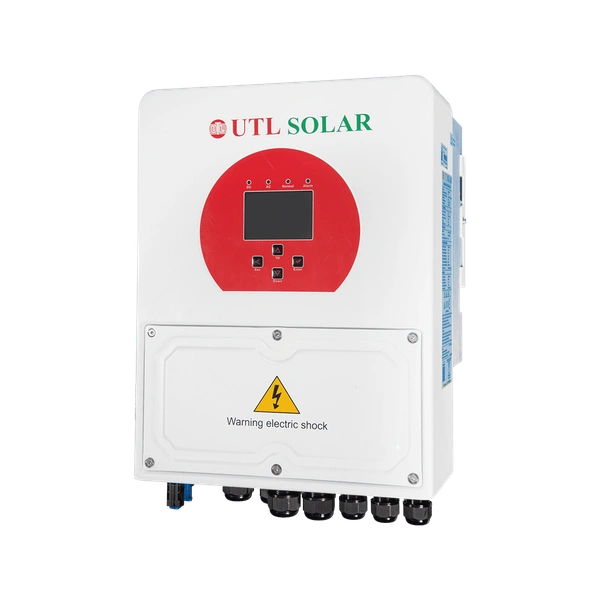

UTL 5 KW 48V Transformer Less Single Phase Solar Hybrid Inverter | HYB-5-GXLS2
₹ 90,900 / Piece
₹ 1,55,430
42%
- Genuine Quality
- Free Shipping
- Secure Checkout
Out of Stock
Experience uninterrupted hybrid power with the all-new 5 KW High-Frequency Hybrid Solar Inverter in a compact, wall-mountable design. Engineered for intelligent energy management, it automatically switches between solar, battery, and grid power to ensure continuous performance. The high-frequency technology delivers faster response, improved efficiency, and silent operation. By maximizing solar utilization and extending battery life, it helps lower energy costs while providing reliable backup for homes and businesses. A perfect choice for both new and retrofit installations—smart, efficient, and built to last.
Smart Features at a Glance
Intelligent Load Management
Keeps only essential appliances running during power cuts, ensuring longer backup and smooth comfort.
Triple Mode Flexibility
Operate as On-Grid, Off-Grid, or UPS — adapt effortlessly to any power condition.
3 Stage MPPT Solar Charging
Extracts maximum energy from solar panels while maintaining optimal battery health.
Custom Power Priority
Choose your preferred power source sequence - battery first, grid next, or vice versa.
Integrated Export Control Easily manage grid export and comply with local net-metering policies.
Ready for Retrofit Installations
Upgrade your old inverter setup without replacing the entire system — AC-coupled for easy integration.
Parallel Operation Support
Expand capacity as your needs grow — link up to 10 inverters effortlessly
Heavy-Duty Charge/Discharge
Ideal for high-load environments like large homes, offices, and shops.
Multi-Layer Safety Protection
Advanced safeguards against overload, surge, overheating, and short-circuit conditions.
High-Voltage Battery Compatibility
Ensures superior efficiency and performance under demanding conditions.
Best Suited For
- Homes experiencing frequent Cuts
- Commercial shops and showrooms
- Clinics, offices, and educational institutes
- Solar retrofits and capacity expansions
- Anyone seeking a dependable hybrid power system

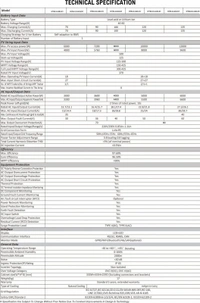

| Model | HYB-5-GXLS2 |
| Rated Output Power | 5000W |
| Peak Power (Off Grid) W | 2 times of rated power for 10 Sec. |
| Rated AC Output Current | 21.8A |
| Max. AC Output Current | 24A |
| Max. Charging Current | 120 A |
| Max. Disharging Current | 120 A |
| MPPT Efficiency | >99% |
| Max PV Input Power | 8000W |
| MPPT Voltage Range | 125V – 500V |
| Max. PV Input Current A | 18+18A |
| Inverter Technology | MPPT |
| No. of MPPT String | 2 |
| Phase | Single Phase |
| Mounting Type | Sleek Wall-Mountable Design |
| Transformer Type | Transformerless |
| Battery Support | Lithium-ion & Lead-acid |
| Warranty | 5 Years Warranty |
| Remote Monitoring | GPRS/WiFi/Bluetooth/4G/LAN |
| Display | LCD+LED |
| Weight | 17KG |
| Safety Standards | IEC 61727, IEC 62116, CEI 0-21,EN 50549, NRS 097, RD 140, UNE 21700, OVE-Richtilinie R25, VDE-AR-N 4105 |
| Operating Temperature Range | -40°C to -60°C |
| Noise | <30 dB |
| Manufacturer | Fujiyama Power Systems Limited, Plot No. 51,52 Sector, Ecotech-1, Ecotech Extn-1, Greater Noida, Gautam Buddha Nagar, Uttar Pradesh 201310 |
