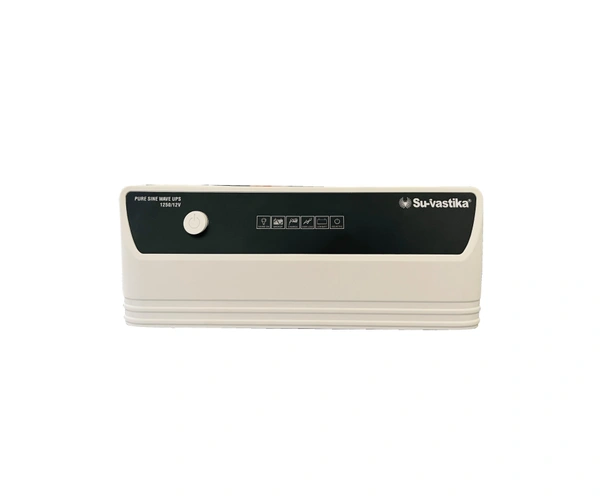

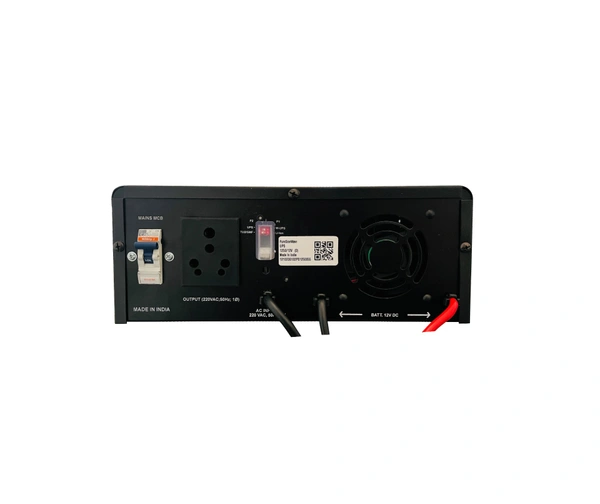

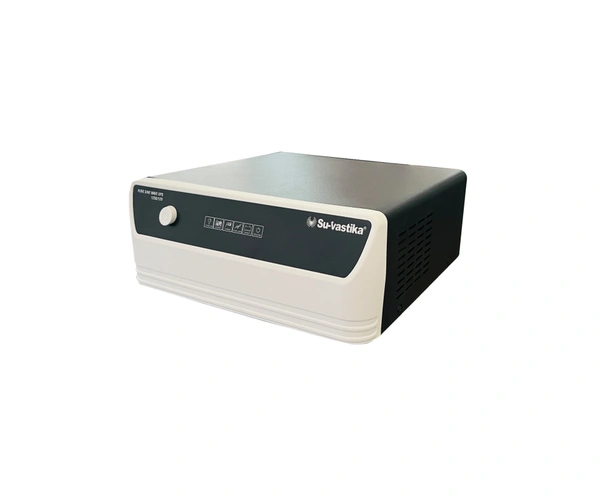

Su-vastika 1250 12V Lithium Home UPS
₹ 5,350 / Piece
₹ 7,200
26%
You will earn 54 points from this product
| MODEL & DISPLAY | |
|---|---|
| Model Name | Pure Sine Wave UPS 1250/12V |
| Display Type | LED |
| LED DISPLAY FEATURES | ||||
|---|---|---|---|---|
| Mains On | Backup | Charge | Overload | Low Battery | ABS Active |
| Batter Low Protection | Overload Protection | Short Circuit Protection | Mains Trip Protection | High Temperature Protection |
| VOLTAGE RANGE NARROW WINDOW UPS MODE | ||||
|---|---|---|---|---|
| Mains A.C Low Cut | 185 ± 10V | |||
| Mains A.C Low Cut Recovery | 195 ± 10V | |||
| Mains High Cut | 285 ± 10V | |||
| Mains High Cut Recovery | 275 ± 10V | |||
| VOLTAGE RANGE NARROW WINDOW W-UPS MODE | ||||
|---|---|---|---|---|
| Mains A.C Low Cut | 105 ± 10V | |||
| Mains A.C Low Cut Recovery | 120 ± 10V | |||
| Mains High Cut | 285 ± 10V | |||
| Mains High Cut Recovery | 275 ± 10V | |||
| OUTPUT PARAMETERS | ||||
|---|---|---|---|---|
| Mains Output Frequency | Same as input (45 Hz - 55 Hz) | |||
| Output Frequency | 50.0 Hz ± 0.1 Hz | |||
| Output Voltage with Full Load | 200V - 220V ± 15V | |||
| Overload | >Above 100% | |||
| Short Circuit Protection | > 200% Load (Few msec) | |||
| Wave Form | Sine Wave | |||
| OUTPUT PARAMETERS | ||||
|---|---|---|---|---|
| Charging Current | 10A / 13A ± 2A | |||
| Recommended Battery Capacity | 100 Ah - 150 Ah | |||
| Number of Batteries | 1 | |||
| WEIGHT & DIMENSION | ||||
|---|---|---|---|---|
| Dimension WXDXH ± 5MM | 300 X 315 X 130 (MM) | |||
| Weight net (Kg) ± 0.5Kg | 7.3 kg | |||
