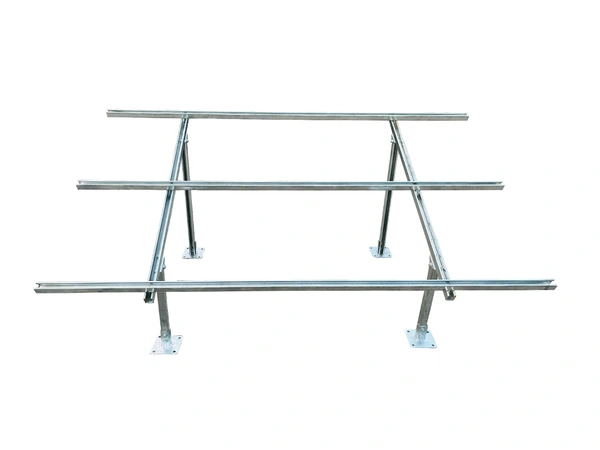

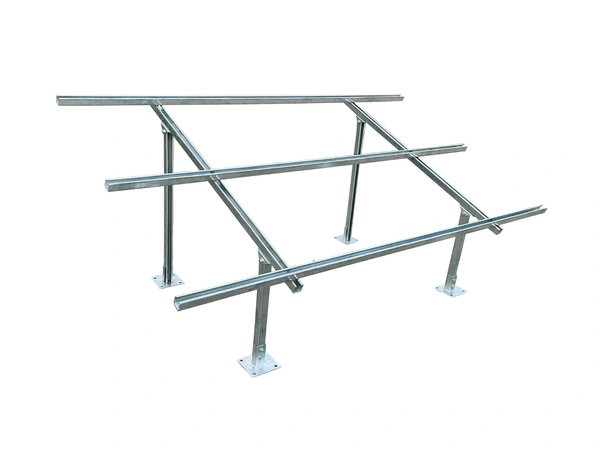

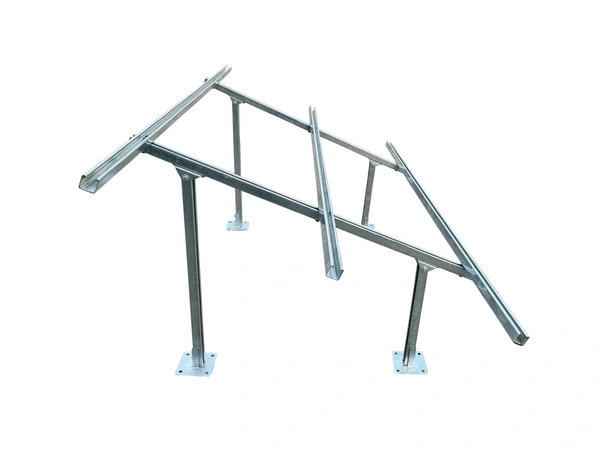

Solar Panel Mounting GI Structure For 2 Panels 300-650W

 Introducing our Solar Panel Mounting GI Structure 15x40x80x40x15  with 2 mm thickness specifically designed for 2 panels with a power range of 300-650W. This sturdy and durable structure is made from high-quality galvanized iron, ensuring long-lasting performance and protection against corrosion. It will support 335W, 450W, 540W, 570W and above 2 Panels.

• 3 Purlin for extra protection from heavy wind. C Channel 3 Purlins will  prevent panels from cracks.  The mounting structure is designed to securely hold and position the solar panels, maximizing their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customization according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting GI Structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot Dip G.I End clamp & middle Clamp, SS Alen bolt. Fixy 10mm Fastners and heavy plain washers.


Package Details

C Channel (15x40x80x40x15x2mm)
Front Leg 36 Inch 2 No.
Back Leg  54 Inch 2 No.
Rafter 2 No.

U Channel (40x40x40x2mm)
Purlin (Support) 3 No.

G.I. Base Plate 4 No.
Hot Dip G.I  Z (End) Clamp 6 No.
Hot Dip G.I  U (Mid) Clamp 3 No.
G.I. Spring Nut 9 No.
SS Allen Bolt 40mm 9 No.
G.I. Nut and Bolt 10x20mm  23 No.
G.I. Plain Washer 63 No.
G.I Fasteners 10mm 16 No.
Angle Approx. 20-23 Degree
