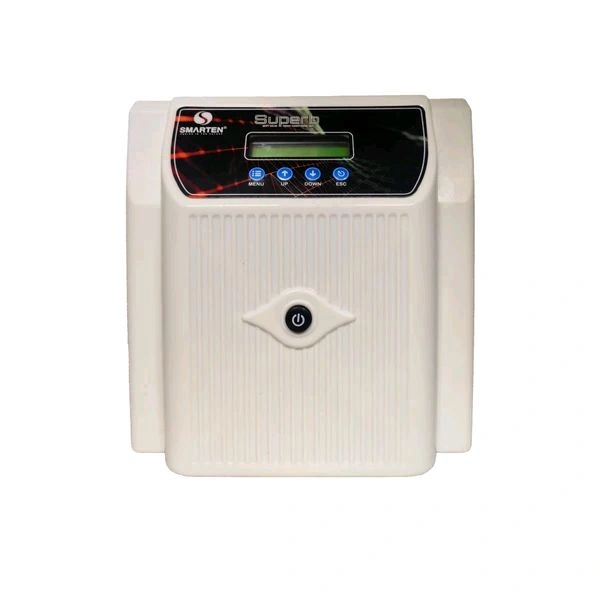

Smarten Superb 2675 2500VA 24V 50A MPPT Solar PCU

• Advanced MPPT Solar Technology
• 50A MPPT Solar Charge Controller
• 2000 Watt Panel Support
• Runs 1 HP submersible pump, some reputed brand
• Runs a 1-tonne, 5-star inverter AC
• Grid Charging Enable/Disable For reducing electricity bills
• 3 Years warranty

LCD DISPLAY
Mains Input Voltage, Battery Voltage, Mains Fuse Blown, Solar Power Available or Not, Reverse PV/High PV Voltage, Mains Current,
Solar Current, Battery Current, Solar charging current, PCU ON/OFF,
Load %, Short Circuit Overload, Wiring Fault, Battery Low,
Battery High, Output Voltage, High Temp., Output Frequency
(Display Values can be different 2% from the RMS actual values)


SOLAR CHARGE CONTROLLER
50A  ± 3A MPPT Solar Charge Controller
VOC 100V  (Voltage Open Circuit)
Panel Support 2000W
2 Panels in series connection
MPPT to PV power connecting up to 15 seconds


OUTPUT  BACKUP MODE
Battery Low Cut warning       21.4V ± 0.2V
Battery Low Cutoff                21.0V ± 0.2V
No Load Current @ 24V:        1.5A ± 0.2A
Waveform                             Pure Sine Wave
Frequency                            50 ± 0.1 Hz
Battery Disc. Current             70 ± 2 A.
AC Output Load                     7.0A
Overload system shutdown at 130% load after approx. >60 sec.


AC MAINS MODE
Grid Charging Current (Tubular/LA)   15A DC ± 2A
Battery Boost Vol. Lead acid              28V ± 0.2V
Battery Boost Voltage SMF/TUB         29V ± 0.2V
Battery Float Voltage                        27.4V ± 0.2V
Battery Deep Discharge Recovery Yes
UPS Mode
Mains AC Low cut                       175V ± 10V
Mains AC Low cut recovery          185V ± 10V
Mains AC High cut                       265V ± 10V
Mains AC high-cut recovery          255V ± 10V
W.UPS Mode
Mains AC low cut                            90V ± 10V
Mains AC Low cut recovery             110V ± 10V
Mains AC High cut                         295V ± 10V
Mains AC High cut recovery            285V ± 10V


DOD SWITCH SELECTION (Battery Depth Of Discharge)
DOD 20%  when battery voltage is 25V ± 0.2V Mains Will be connected
DOD 30%  when battery voltage is 24V ± 0.2V Mains Will be connected
DOD 40%  when battery voltage is 23V ± 0.2V Mains Will be connected
DOD 50%  when battery voltage is 22V ± 0.2V Mains Will be connected


MAINS DISCONNECTED, CONNECTED SELECTION
If solar is available and battery reaches 28V ± 0.2V after <5 min. Mains will be disconnected.
When battery voltage reaches permitted DOD voltage and solar power is not available, the mains will be connected.
