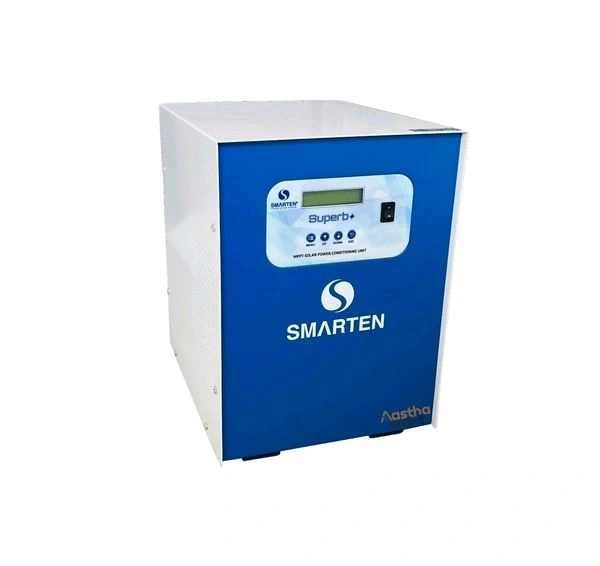

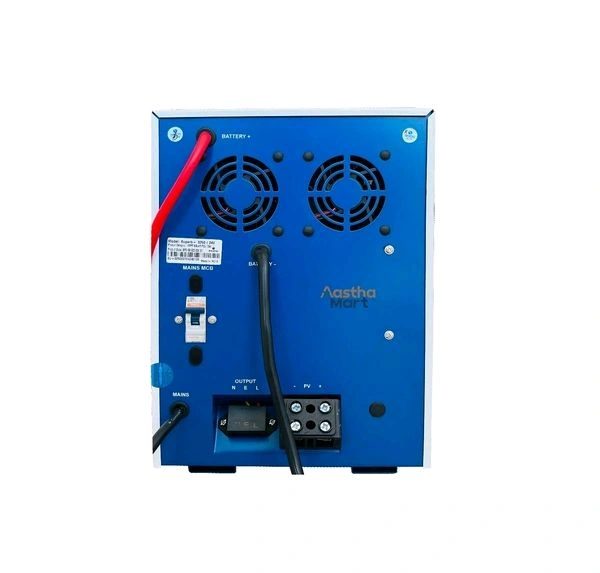

Smarten Superb+ 3600 (Li-Ion) 24V MPPT Solar Inverter

• Lithium PO₄, Lead Acid & SMF Battery Support
• Heavy-duty Transformer Design
• Advanced MPPT Solar Technology
• 70A MPPT Solar Charge Controller
• 3000 Watt Panel Support
• Runs 1 HP submersible Pump
• Easily Runs 1.5 Tonne 5-Star Inverter AC
• Solar Charging Current Setting as per battery Capacity
• 3 Priority Modes
• Grid Charging Enable/Disable For reducing electricity bills
• DOD can set Four battery Discharge levels (20%, 30%, 40%, 50%)
• MCB for Protection from Input Mains

LCD DISPLAY
Mains Input Voltage, Battery Voltage, Mains Fuse Blown, Solar Power Available or Not, Reverse PV/High PV Voltage, Mains Current,
Solar Current, Battery Current, Solar charging current, PCU ON/OFF,
Load %, Short Circuit Overload, Wiring Fault, Battery Low,
Battery high, output voltage high, high temp., output frequency, total saving unit.
(Display Values can be different 2% from the RMS actual values.)


SOLAR CHARGE CONTROLLER
70A  ± 3A MPPT Solar Charge Controller
VOC 105V  (Voltage Open Circuit)
Panel Support 3000W
MPPT to PV power connecting up to 15 seconds


OUTPUT  BACKUP MODE
Battery Low Cut warning 21.4V ± 0.2V
Battery Low Cutoff                             21.0V ± 0.2V
No Load Current @ 24V                      1.5A ± 0.2A
Wave form                                       Pure Sine Wave
Frequency                                          50 ± 0.1 Hz
Battery Disc. Current                           90 ±2Amp.
AC Output Load                                    8.9A

Overload system Shutdown at 130% Load after approx. >180 sec.

This PCU can run heavy loads like 1 HP submersible pumps, Photocopiers, refrigerators, washing machines, etc., depending on their capacity (please check the inverter capacity and your power requirement)

 AC MAINS MODE
Grid Charging Current (Tubular/LA)  20A
Battery Boost Vol. Lead acid             28V ± 0.2V
Battery Boost Voltage SMF/TUB      29V ± 0.2V
Battery Float Voltage                          27.4V ± 0.2V
Battery Deep Discharge Recovery Yes
UPS Mode
Mains AC Low cut                               175V ± 10V
Mains AC Low cut recovery               185V ± 10V
Mains AC High cut                              265V ± 10V
Mains AC High cut recovery              255V ± 10V
W.UPS Mode
Mains AC low cut                                   90V ± 10V
Mains AC Low cut recovery               110V ± 10V
Mains AC High cut                              295V ± 10V
Mains AC High cut recovery              285V ± 10V


MODE PRIORITY
Solar>>Battery>>Grid  First priority is Solar then Battery & Grid
Solar>>Grid>>Battery First priority is Solar then Grid & Battery
Grid>>Solar>>Battery First priority is Grid then Solar & Battery (Mains will not disconnect in this condition)


DOD SWITCH SELECTION (Battery Depth Of Discharge)
DOD 20%  when battery Voltage 25V ± 0.2V Mains Will be connected
DOD 30%  when battery Voltage 24V ± 0.2V Mains Will be connected
DOD 40%  when battery Voltage 23V ± 0.2V Mains Will be connected
DOD 50%  when battery Voltage 22V ± 0.2V Mains Will be connected


MAINS DISCONNECTED, CONNECTED SELECTION
If solar is available and battery reaches 27.4V ± 0.2V after <5 min. Mains will be disconnected.
When battery voltage reaches permitted DOD voltage and solar power not available mains will be connected.
NOTE:- This condition is not applicable for Grid >> Solar >> Battery condition.
