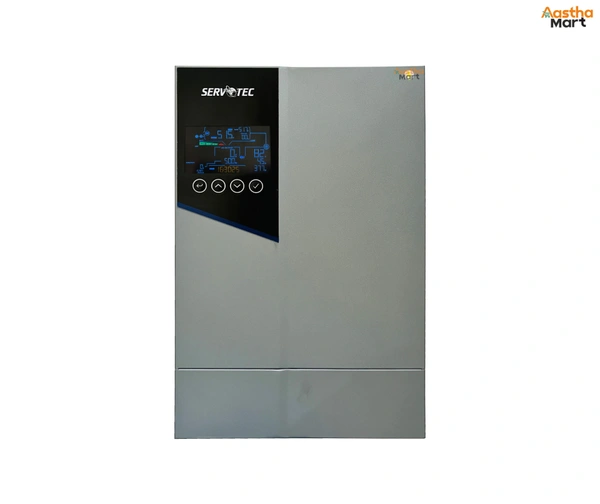

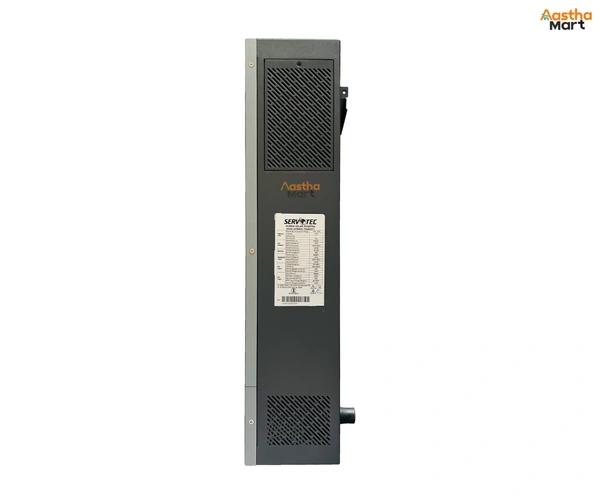

Servotec Sparkle 7.5 KVA 48V Transformer Less Hybrid MPPT Solar PCU

Model
STAG-HYBINV-7548/S11

Voltage Range (VAC)
  90 to 280±3 (Normal Mode)

170 to 280±3 (UPS mode)

Frequency (Hz)
50 / 60 (Auto Adaptive)

Rated Capacity (kW)
6.5

Voltage (VAC) Single Phase
208 / 220 / 230 / 240 (Selectable)

Power Factor (PF)
1

Frequency
50/60Hz ±0.1%

Switch Time (ms)
20 ms (Normal Node)
10 ms (UPS mode)

Wave Form
Pure Sine Wave

Overload Capacity (Battery Mode)
10min  102 to 120% Load

1min    120 to 150% Load

10Sec. 150 to 200% Load


Max. Efficiency (Battery Mode)
93% @ 48VDC

Parallel Quantity
NA

Solar Charger Type
MPPT

Max PV Input Current / Panel Support
28A / 9000W

MPPT Range @ Operating Voltage (VDC)
60 to 450

Max PV Open Circuit Voltage (VDC)
500

Max PV Charge Current (A)
120

Max AC Charge Current (A)
120

Max. Charge Current (PV + AC) (A)
120

Battery Rated Voltage (VDC)
48

Floating Charge Voltage (VDC)
54

Overcharge Protection (VDC)
61

Battery Type
Lithium and Lead-acid

Display
LCD

Grid Export Function
Yes

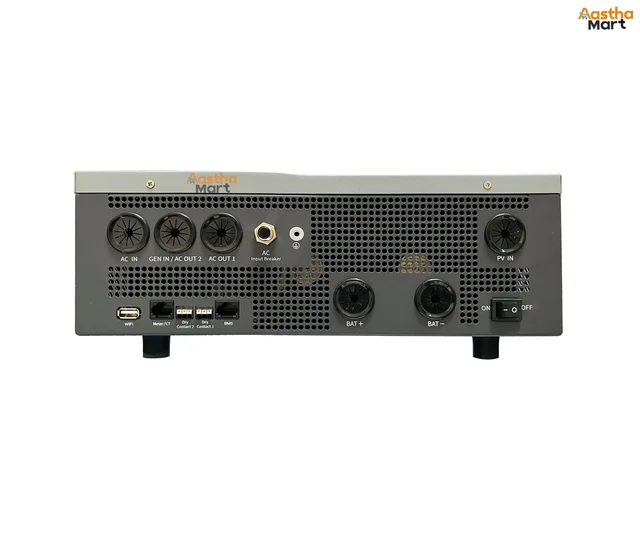

Interface
RS485 / USB / Dry Contact / CT / Meter

Monitoring
Wifi

Operating Temperature
-10 ℃ to 50 ℃

Warranty
5 Years

Net Weight (KG)
10.7

Dimensions (W*H*D)
508*338*136.5mm

Country of Origin
Bharat

Manufactured By
Servotec Renewable Power System Limited
806, 8th Floor, Crown Heights,
Sector 10 Rohini, New Delhi 110085


Note: Please contact us for Product Manual
