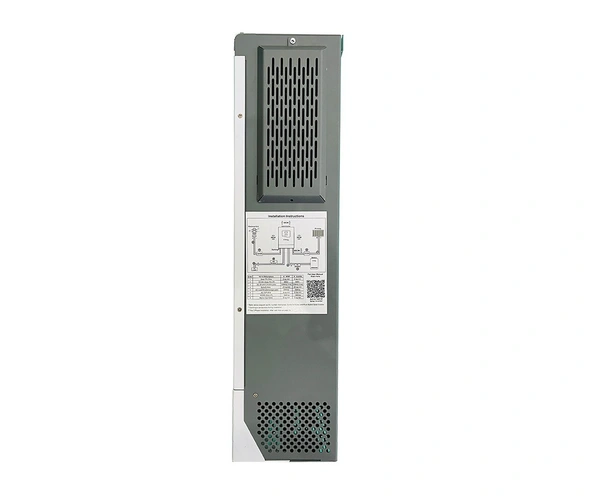

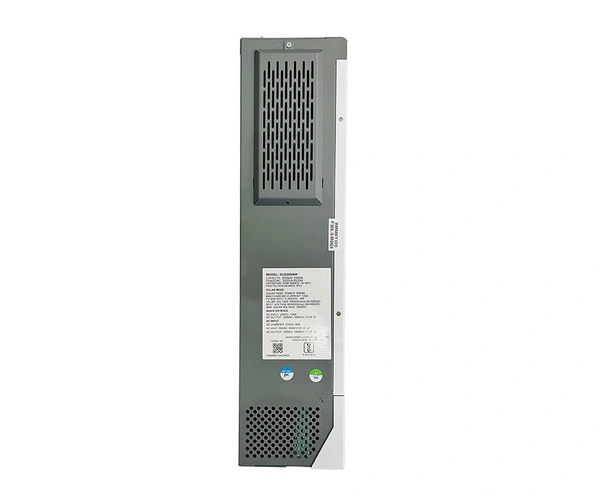

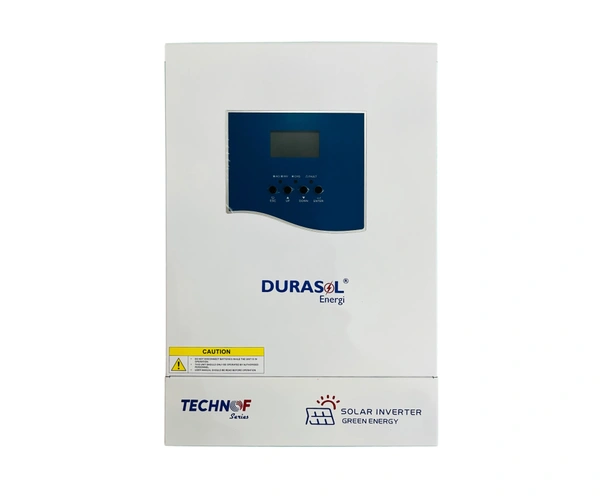

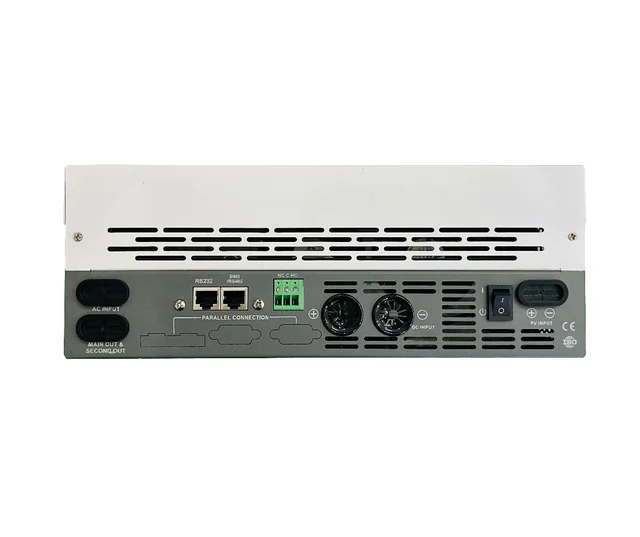

Durasol 3KW 24V Transformer Less Hybrid MPPT Solar Inverter

Durasol hybrid solar inverter is a notable addition to our robust lineup of efficient solar products, reflecting our forward-thinking approach. Recognizing the importance of integrating cutting-edge technology, we have developed these advanced hybrid solar inverters. Durasol continues to push the boundaries of solar technology, ensuring we deliver superior performance and innovation to our customers

Model
DUS3024HF

Voltage Range (VAC)
90 to 280±3 (Normal Mode)

170 to 280±3 (UPS mode)

Frequency (Hz)
50 / 60 (Auto Adaptive)

Rated Capacity (kW)
3

Voltage (VAC) Single Phase
220 / 230 / 240
Power Factor (PF)
1

Frequency
50/60Hz ±0.1%

Switch Time (ms)
20 ms (Normal Node)
10 ms (UPS mode)

Wave Form
Pure Sine Wave

Overload Capacity (Battery Mode)
11 Sec  105 to 150% Load

 2 Sec   150 to 200% Load

400ms.     >     200% Load


Parallel Quantity
NA

Solar Charger Type
MPPT

Max PV Input Current / Panel Support
15A / 3000W

MPPT Range @ Operating Voltage (VDC)
40 to 450

Max PV Open Circuit Voltage (VDC)
500

Max PV Charge Current (A)
100

Max AC Charge Current (A)
60

Max. Charge Current (PV + AC) (A)
100

Battery Rated Voltage (VDC)
24

Floating Charge Voltage (VDC)
27

Overcharge Protection (VDC)
30.5

Battery Type
Lithium and Lead-acid

Display
LCD

Grid Export Function
Yes

Interface
RS485 / RS232 / USB / D􀆔 Contact


Operating Temperature
-10 ℃ to 50 ℃


Warranty
5 Years

Net Weight (KG)
6.4

Manufactured By
Intelenergi Global Private Limited                                                  124-125, Udyog Vihar Phase-VI, Sector 37, Gurugram-122001 (INDIA)

Note: Please contact us for Product Manual PDF
