MSV Limitless 24/36/48V 60A MPPT Solar Charge Controller SMU with On-Grid Companion Feature

MSV Limitless MPPT Series
Unlock the full potential of your solar energy system with the MSV Limitless MPPT Series – ODL-MPPT-SMU-24/36/48-330/60, a next-generation Maximum Power Point Tracking (MPPT) Solar Management Unit engineered for superior performance, flexibility, and long-term reliability.

⚡ Unmatched Power & Efficiency

330V Open Circuit solar input and deliver an impressive 60A charging output to your battery bank. The high-speed MPPT algorithm ensures maximum power harvest from every solar panel, improving system efficiency by up to 30% compared to traditional PWM controllers.

🔋 Wide Voltage & Battery Compatibility

Designed for 24V, 36V, and 48V systems, supports multiple battery chemistries:

• Lead-Acid (LA)

• Lithium-Ion (Li-ion)

• Lithium Iron Phosphate (LiFePO₄) or LFP

Smart multi-stage charging—including Pre-conditioning, Bulk (CC), Absorption (CV), and Float—ensures longer battery life and optimal charge utilization.

⚙️ Smart Configurability & Control

• User-configurable output voltage & current

• Selectable power management modes:

  • SOL → BAT → GRID

  • SOL → GRID → BAT

  • Grid Charging Always ON

  • Grid Charging Always OFF

These intelligent configurations maximize uptime and energy efficiency across diverse residential, commercial, and hybrid setups.

🛠️ Built for Durability & Ease of Use

Housed in a robust, thermally-optimized enclosure, this controller is engineered for reliable operation under harsh environmental conditions. Its intuitive interface and plug-and-play wiring simplify installation and system integration.

MSV Limitless MPPT Series
Unlock the full potential of your solar energy system with the MSV Limitless MPPT Series – ODL-MPPT-SMU-24/36/48-330/60, a next-generation Maximum Power Point Tracking (MPPT) Solar Management Unit engineered for superior performance, flexibility, and long-term reliability.

🌞 Advanced MPPT Solar Management

The ODL-MPPT-SMU features a real-time MPPT tracking engine, ensuring fast response to changing irradiance and temperature. This guarantees stable, high-efficiency operation even in dynamic or partially shaded conditions.

🌍 Sustainable Performance You Can Trust

Reduce your dependency on grid power, minimize electricity costs, and contribute to a cleaner environment. The MSV Limitless MPPT Series delivers high-efficiency solar power conversion, ensuring maximum return on investment and sustainable energy independence.

Model No.
ODL-MPPT-SMU-24/36/48-330/60

Technology
MPPT

Product Series
MSV OD Limitless Series (ODL)

Battery Operating Mode
24/36/48V Battery

Solar Panel Support (Pmax)
2000W on 24V Battery
3000W on 36V Battery
4000W on 48V Battery

Solar Input Voltage (VOC)
330V

Battery Type
Lead- Acid, Lithium Ion, Lithium PO4 battery

Output Current (Max)
60A (User Configurable Output Current ranging from 5A to 60A)

Charging Stages
Preconditioning, Bulk (CC), Absorption (CV), Float

Protections
Solar Reverse, Reverse Battery (Fuse Based), Over Current , Over Voltage, Over Temperature Protection, Solar Reverse Current flow

Cooling
Double Fan Based Adaptable forced air Cooling

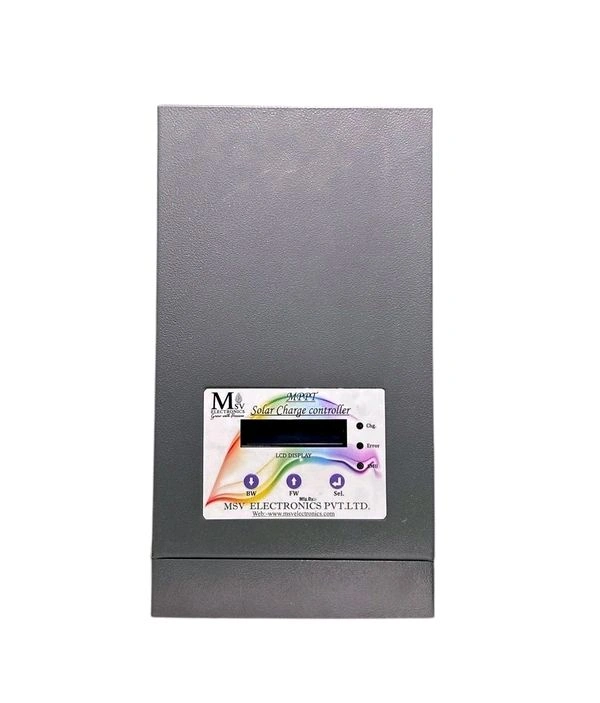

Display
16x2 Character Display

Parameters Displayed on LCD
Solar Voltage (Vsol), Solar Current (Isol), Solar Power (Sol PWR), Battery Voltage (Vbat), Charging Current (Ichg), Solar Panel Generated Unit, Power Save ON/OFF, Mains Connect/ Disconnect

Indications
Solar Reverse, Battery Reverse/Fuse Blown, SMU LE

Switching Element
MOSFET

Efficiency
Up to 95%

Mounting Type
Wall Mounted

Product Dimensions (L*W*H)
25x18x14 CM

Packaging Dimensions (L*W*H)
35x25x20 CM

Weight
3.8 KG

Warranty
2 Years

Country Of Origin                                                                      Bharat
