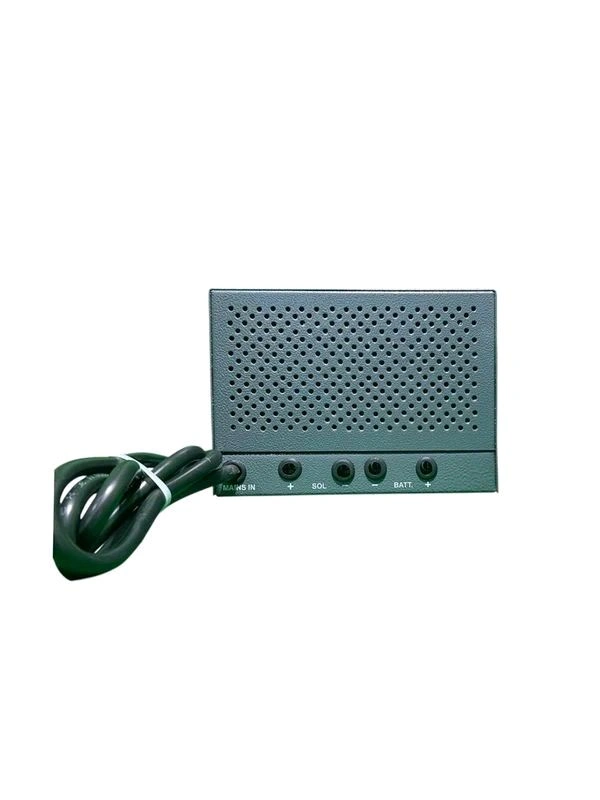

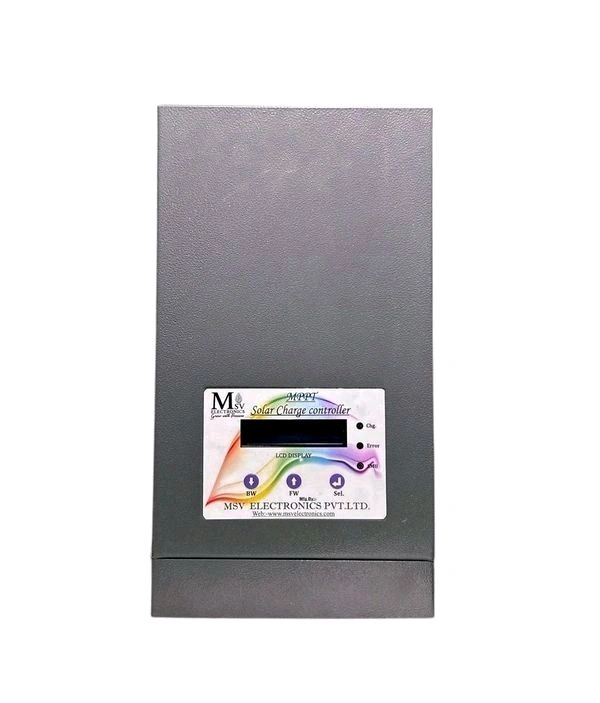

MSV Limitless 24/36/48V 220V 70A MPPT Solar Charge Controller SMU With On-Grid Companion Feature

Companion Feature for PM SURYA GHAR YOJNA OnGrid Systems

MSV Limitless MPPT Series
Unlock the full potential of your solar energy system with the MSV Limitless MPPT Series – ODL-MPPT-SMU-24/36/48-220/70, a next-generation Maximum Power Point Tracking (MPPT) Solar Management Unit engineered for superior performance, flexibility, and long-term reliability.

⚡ Unmatched Power & Efficiency
220V Open Circuit solar input and deliver an impressive 60A charging output to your battery bank. The high-speed MPPT algorithm ensures maximum power harvest from every solar panel, improving system efficiency by up to 30% compared to traditional PWM controllers.

🔋 Wide Voltage & Battery Compatibility
Designed for 24V, 36V, and 48V systems, supports multiple battery chemistries:
Lead-Acid (LA)
Lithium-Ion (Li-ion)
Lithium Iron Phosphate (LiFePO₄) or LFP

Smart multi-stage charging—including Pre-conditioning, Bulk (CC), Absorption (CV), and Float—ensures longer battery life and optimal charge utilization.

⚙️ Smart Configurability & Control
User-configurable output voltage & current
Selectable power management modes:
SOL → BAT → GRID
SOL → GRID → BAT
Grid Charging Always ON
Grid Charging Always OFF

These intelligent configurations maximize uptime and energy efficiency across diverse residential, commercial, and hybrid setups.

🛠️ Built for Durability & Ease of Use
Housed in a robust, thermally-optimized enclosure, this controller is engineered for reliable operation under harsh environmental conditions. Its intuitive interface and plug-and-play wiring simplify installation and system integration.

MSV Limitless MPPT Series
Unlock the full potential of your solar energy system with the MSV Limitless MPPT Series a next-generation Maximum Power Point Tracking (MPPT) Solar Management Unit engineered for superior performance, flexibility, and long-term reliability.

🌞 Advanced MPPT Solar Management
A real-time MPPT tracking engine, ensuring fast response to changing irradiance and temperature. This guarantees stable, high-efficiency operation even in dynamic or partially shaded conditions.

🌍 Sustainable Performance You Can Trust
Reduce your dependency on grid power, minimize electricity costs, and contribute to a cleaner environment. The MSV Limitless MPPT Series delivers high-efficiency solar power conversion, ensuring maximum return on investment and sustainable energyindependence.

Model No.
ODL-MPPT-SSMU-24/36/48-200/70

Technology
MPPT

Product Series
ODL Limitless Series

Battery Operating Mode
24/36/48V Battery

SPV (Pmax)
3000W on 24V Battery
4500W on 36V Battery
6000W on 48V Battery

Solar Input Voltage (VOC)
220V (for 24V Battery)
220V (For 36V Battery)
220V (for 48V Battery)

Battery Type
Lead Acid (Tubular/SMF)
Lithium PO4 battery (LFP)

Output Current
5-70A User configurable

Display
16x2 Character Display

Enclosure Type
MS (Grey Color)

Protections
Solar Reverse, Reverse Battery (Fuse Based), Over Current, Over Voltage, Over Temperature, Solar Reverse current flow.

MPPT Efficiency
Up to 95%

Cooling
Double Fan based adaptable forced Air Cooling

Mounting Type
Retrofit Wall Mounted

Product Dimensions (L*W*H)
34x18x14 CM

Weight
4.9 KG

Warranty
2 Years

Country Of Origin
Bharat
