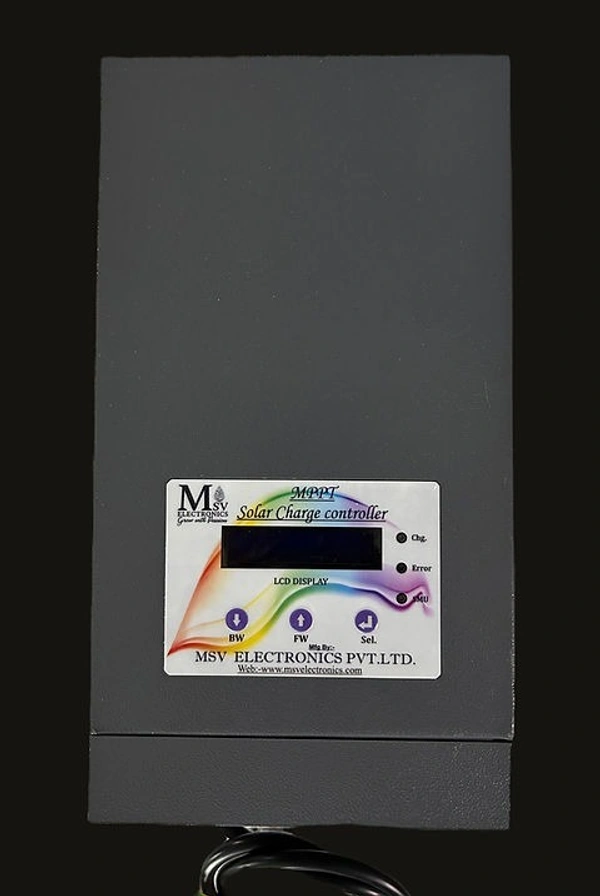

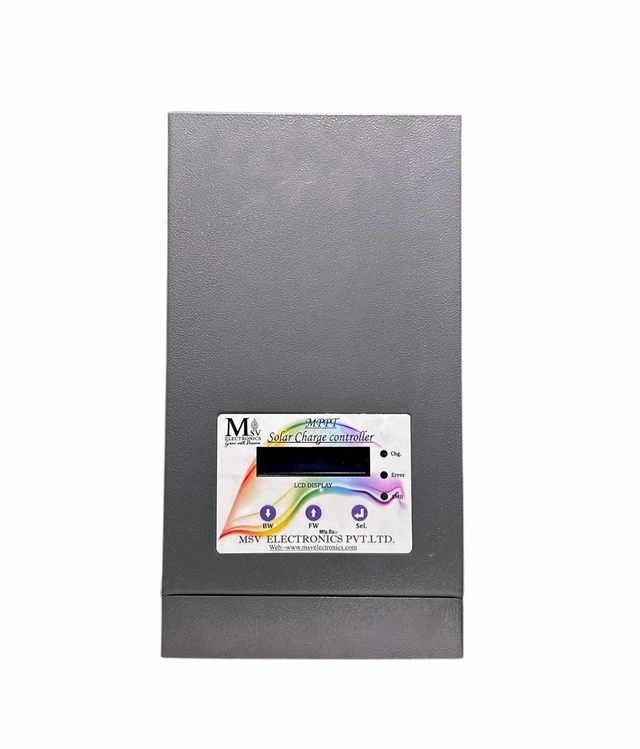

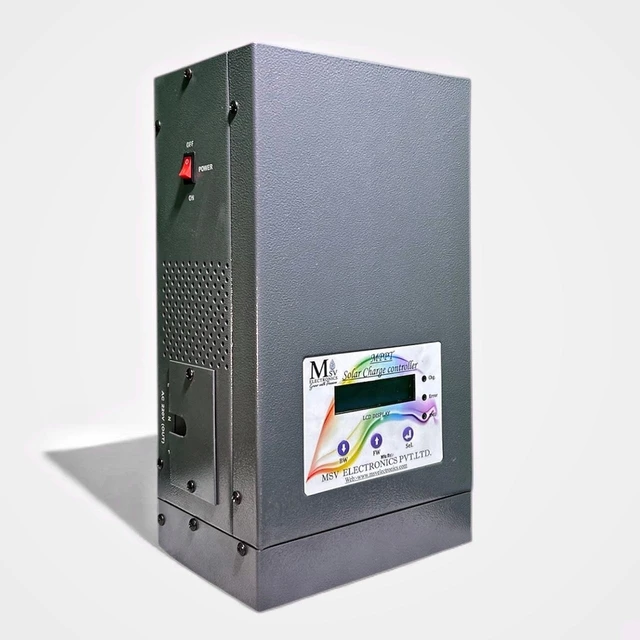

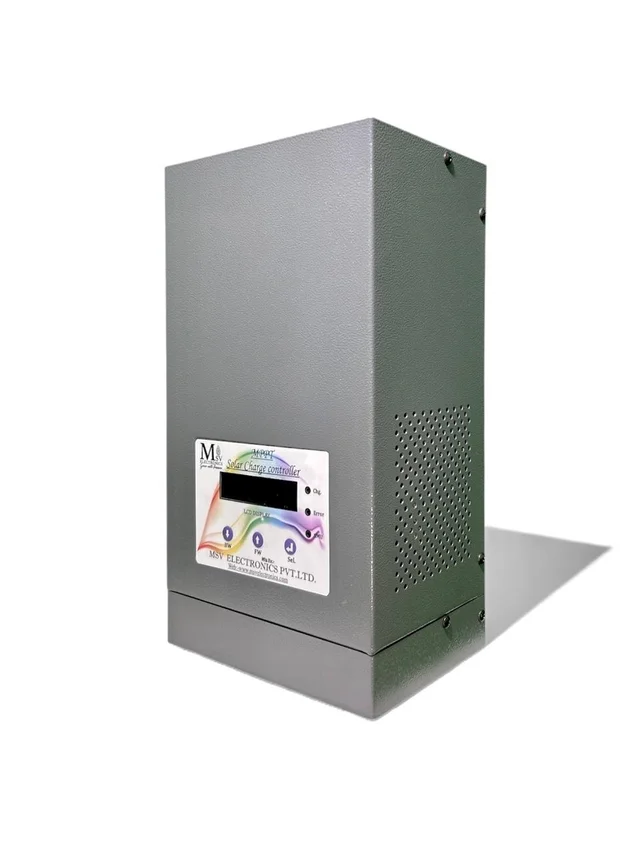

MSV Limitless 12/24/36/48 80A MPPT Solar Charge Controller SMU

MSV Limitless MPPT Series
Unlock the full potential of your solar energy system with the MSV Limitless MPPT Series – ODL-MPPT-SMU-12/24/36/48-165/80, a next-generation Maximum Power Point Tracking (MPPT) Solar Management Unit engineered for superior performance, flexibility, and long-term reliability.

⚡ Unmatched Power & Efficiency

165V open circuit solar input and deliver an impressive 80A charging output to your battery bank. The high-speed MPPT algorithm ensures maximum power harvest from every solar panel, improving system efficiency by up to 30% compared to traditional PWM controllers.

🔋 Wide Voltage & Battery Compatibility

Designed for 12V, 24V, 36V, and 48V systems, supports multiple battery chemistries:

• Lead-Acid (LA)

• Lithium-Ion (Li-ion)

• Lithium Iron Phosphate (LiFePO₄) or LFP

Smart multi-stage charging—including Pre-conditioning, Bulk (CC), Absorption (CV), and Float—ensures longer battery life and optimal charge utilization.

⚙️ Smart Configurability & Control

Adapt the controller to your specific energy needs with:

• User-configurable output voltage & current

• Selectable power management modes:

  • SOL → BAT → GRID

  • SOL → GRID → BAT

  • Grid Charging Always ON

  • Grid Charging Always OFF

These intelligent configurations maximize uptime and energy efficiency across diverse residential, commercial, and hybrid setups.

🌞 Advanced MPPT Solar Management

The ODL-MPPT-SMU features a real-time MPPT tracking engine, ensuring fast response to changing irradiance and temperature. This guarantees stable, high-efficiency operation even in dynamic or partially shaded conditions.

🛠️ Built for Durability & Ease of Use

Housed in a robust, thermally-optimized enclosure, this controller is engineered for reliable operation under harsh environmental conditions. Its intuitive interface and plug-and-play wiring simplify installation and system integration.

🌍 Sustainable Performance You Can Trust

Reduce your dependency on grid power, minimize electricity costs, and contribute to a cleaner environment. The MSV Limitless MPPT Series delivers high-efficiency solar power conversion, ensuring maximum return on investment and sustainable energy independence.

Why Choose MSV Electronics
MSV Electronics is a trusted name in high-performance solar and embedded control systems, combining precision engineering with smart energy management. The Limitless MPPT Series reflects our commitment to innovation, reliability, and sustainability — empowering you to take control of your energy future.

Model No.
ODL-MPPT-SMU-12/24/36/48-165/80

Technology
MPPT

Product Series
MSV OD Limitless Series (ODL)

Battery Operating Mode
12/24/36/48V Battery

Solar Panel Support (Pmax)
1500W on 12V Battery
3000W on 24V Battery
4500W on 36V Battery
6000W on 48V Battery

Solar Input Voltage (VOC)
90V - 165V

Battery Type
Lead- Acid, Lithium Ion, Lithium PO4 battery

Output Current (Max)
80A (User Configurable Output Current ranging from 5A to 80A)

Charging Stages
Preconditioning, Bulk (CC), Absorption (CV), Float

Protections
Solar Reverse, Reverse Battery (Fuse Based), Over Current , Over Voltage, Over Temperature Protection, Solar Reverse Current flow

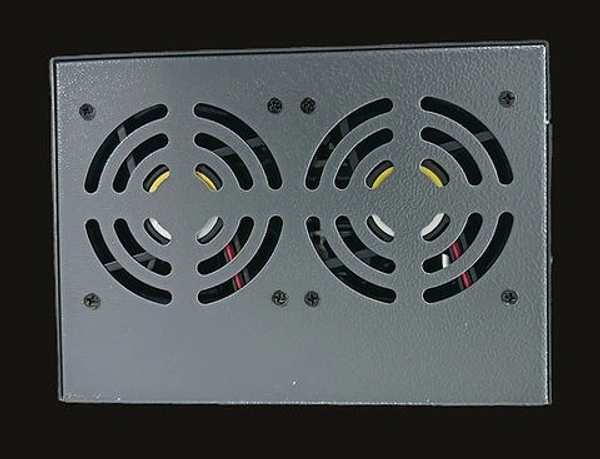

Cooling
Double Fan Based Adaptable forced air Cooling

Display
16x2 Character Display

Parameters Displayed on LCD
Solar Voltage (Vsol), Solar Current (Isol), Solar Power (Sol PWR), Battery Voltage (Vbat), Charging Current (Ichg), Solar Panel Generated Unit, Power Save ON/OFF, Mains Connect/ Disconnect

Indications
Solar Reverse, Battery Reverse/Fuse Blown, SMU LE

Switching Element
MOSFET

Efficiency
Up to 95%

Mounting Type
Wall Mounted

Product Dimensions (L*W*H)
34x18x14 CM

Packaging Dimensions (L*W*H)
50x30x25 CM

Weight
4.9 KG

Warranty
2 Years

Country Of Origin                                                   Bharat
