MSV E-Rickshaw 48V 15A MPPT Solar Charger
₹4,199 / Piece
₹6,299
33%
You will earn 42 points from this product
- Genuine Quality
- Free Shipping
- Secure Checkout

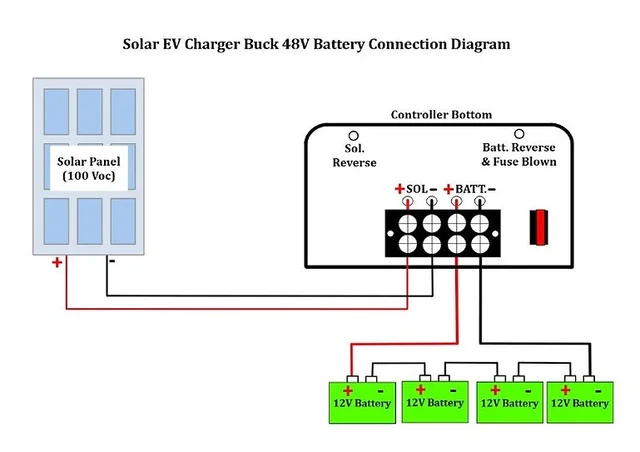

E Rikshaw Driver has limited running kilometers availability. This controller will increase your running kilometers up to 2 times in a sunny day (Depend on weather and running habits) and it will also increase battery life. You need a special E Rikshaw Panel which VOC range is 70 to 100V. Controller will charge your batteries in running time also. Now reduce your per kilometer running cost. You can use it by installing two or more Panels by connecting them in series up to 100V and maximum 900W.
| Technology | MPPT (Boost) |
| Battery Operating Mode | 48V |
| Solar Panel Support | 900W |
| Solar Input Voltage (VOC Max.) | 100V (Open Circuit Voltage) |
| Solar Input Voltage (VOC Min.) | 72V |
| Battery Type | Lead- Acid (Tubular/SMF) Lithium PO4 Compatible available on Demand |
| Self-Power Consumption | <2W |
| Max Charging Current | 15A |
| Display | 16x2 Character Display (Continuous Working). Display turns ON during the Charging time only. |
| Parameters Displayed on LCD |
Solar Voltage (Vsol), Solar Current (Isol), Solar Power (Sol PWR), Battery Voltage (Vbat), Charging Current (Ichg), Solar Panel Generated Unit |
| Indications | Solar Reverse, Battery Reverse/Fuse Blown LED |

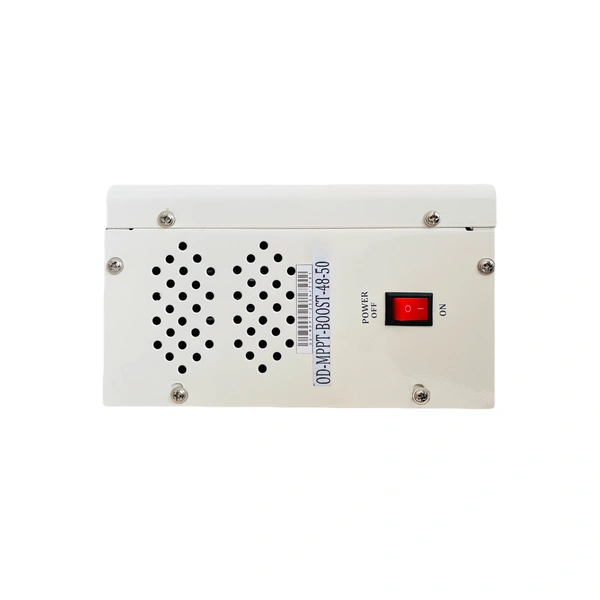

| Switches | Power ON/OFF |
| Solar Reverse Current Protection | Yes |
| Battery Reverse Protection | Yes |
| Fuse Protection | Yes |
| Spare Fuse Provided | Yes |
| Switching Element | MOSFET |
| Efficiency | Up to 95% |

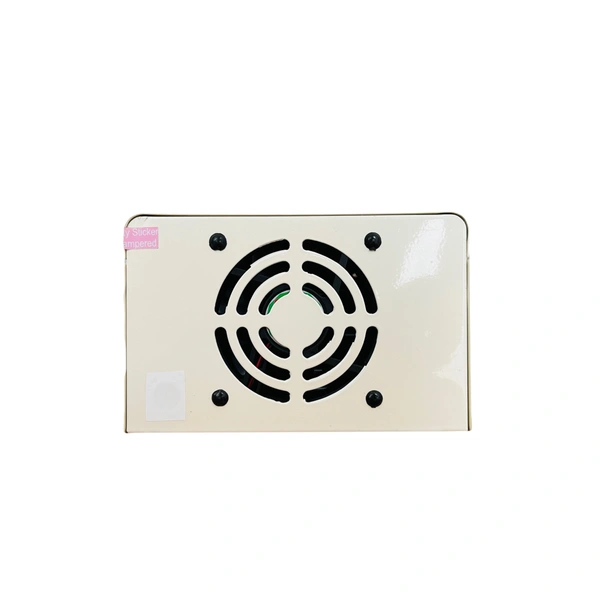

| Cooling | Fan (Forced Air Cooling for Longer Life) Fan turns on when Charging Current goes above 4A and turns off when it goes below 2A. |

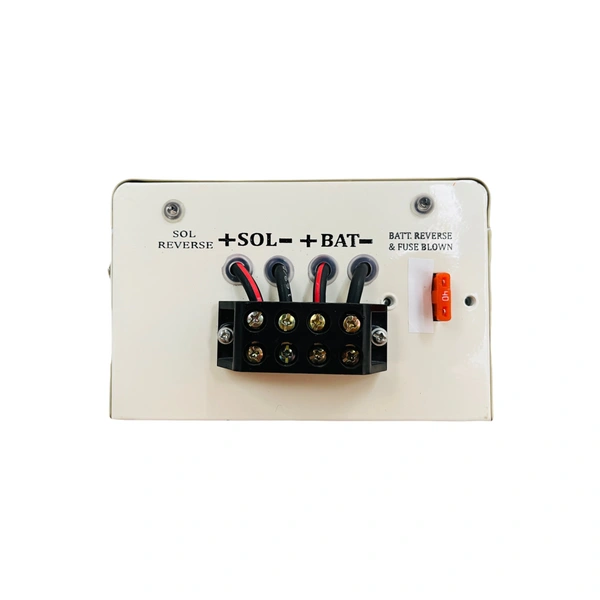

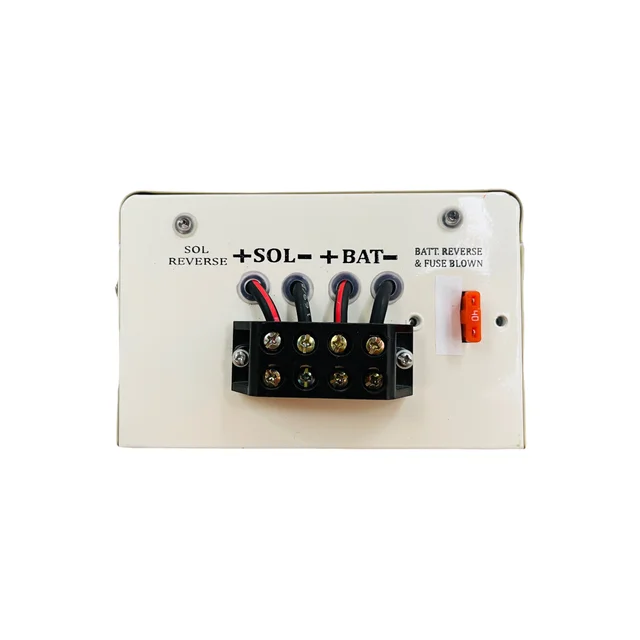

| Connection | Bakelite Screw Terminal |
| Mounting Type | Wall Mounted |
| Temperature | 0˚C TO 55˚C |
| Product Dimensions (L*W*H) | 18*16*10 CM |
| Packaging Dimensions (L*W*H) | 22*22*14 CM |
| Weight | 1.5 Kg |
| Warranty | 1 Year |
| Manufacturer | MSV Electronics Pvt. Ltd. |
| Country of Origin | India |
