MSV E-Rickshaw 48V 10A Boost MPPT Solar Charger

₹ 3,100 / Piece

₹ 4,800

35%

Whatsapp
Facebook
You will earn 31 points from this product

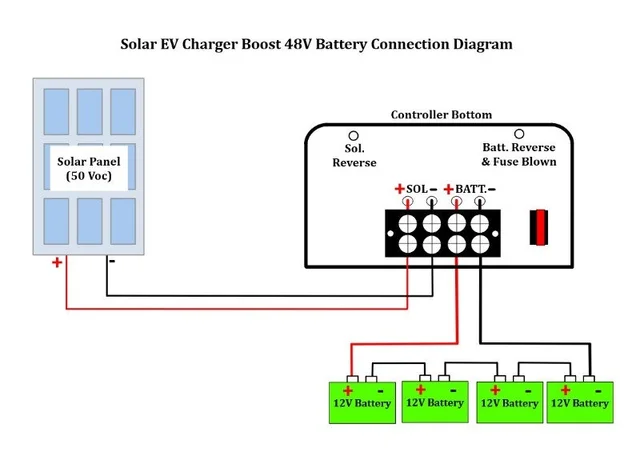

MSV Boost charge controller is a best option for E Rikshaw. Normally driver has limited running kilometers availability. This controller will increase your running kilometers up to 50% in a sunny day (Depend on weather and running habits)  and it will also increase battery life. You need a 36 to 50VOC solar Panel (up to 600W). Controller will charge your 48V batteries by these panels in day time in standing and running also. You can use it by installing two or more Panels by connecting them in series up to 50V and maximum 600W. It will charge 48V batteries by 24V Panel (Up to 50VOC). Now reduce your per kilometer running cost. It will be help in earn more money for you.

 Technology  MPPT (Boost)
 Battery Operating Mode  48V
 Solar Panel Support  600W
 Solar Input Voltage (VOC Max.)  50V (Open Circuit Voltage)
 Solar Input Voltage (VOC Min.)  30V
 Battery Type Lead- Acid (Tubular/SMF)
Lithium PO4 Compatible Available on Demand
 Self-Power Consumption   <2W
 Max Charging Current  10A

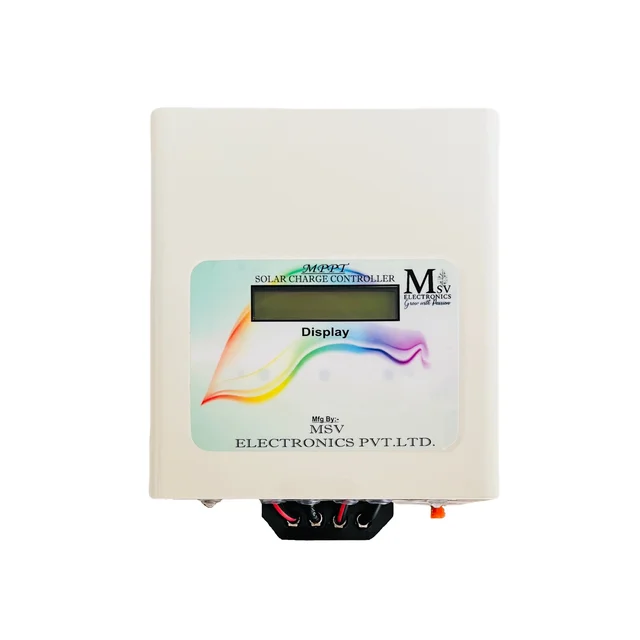

 Display  16x2 Character Display (Continuous
 Working) Display Bakelite turns ON
 during the Charging Time only.
 Parameters Displayed on
 LCD
 Solar Voltage (Vsol), Solar Current (Isol),
 Solar Power (Sol PWR), Battery Voltage
   (Vbat), Charging Current (Ichg), Solar
 Panel Generated Unit

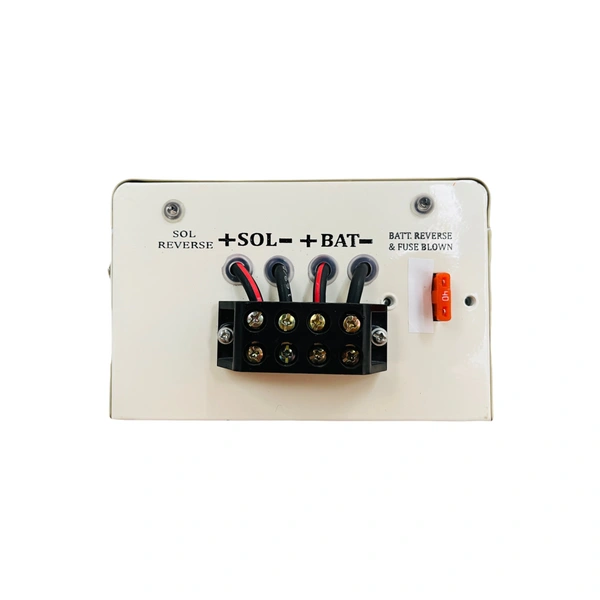

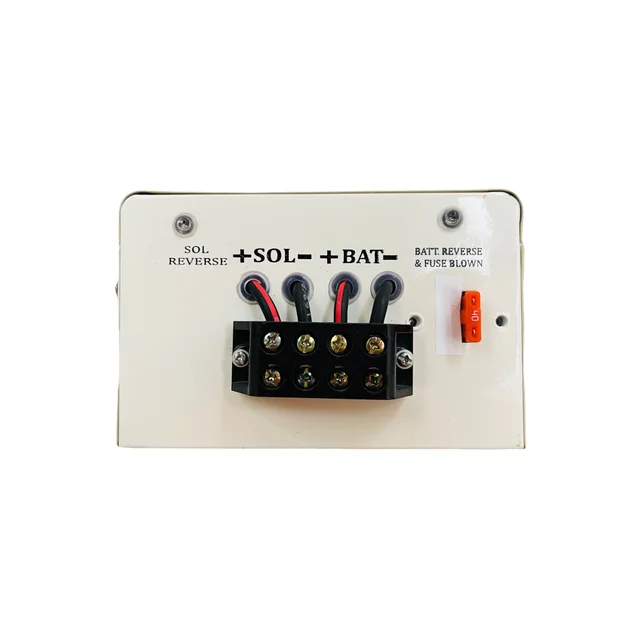

 Indications  Solar Reverse, Battery Reverse/Fuse
 Blown LED

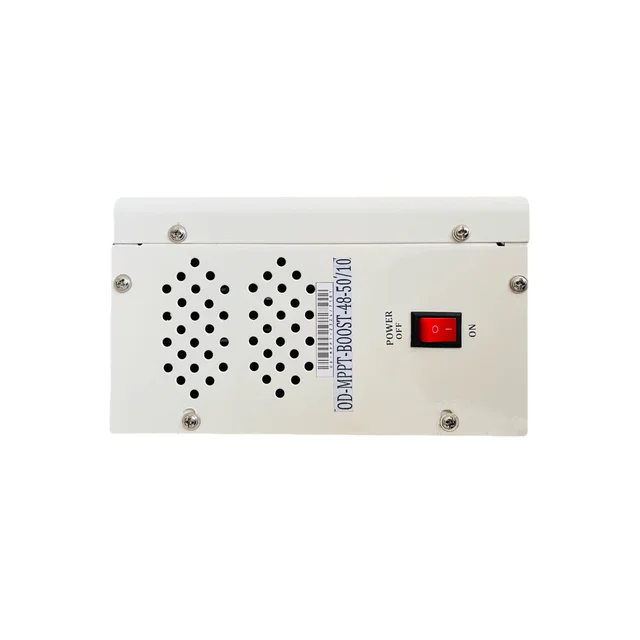

 Switches  Power ON/OFF
 Solar Reverse Current
 Protection
 Yes
 Battery Reverse Protection         Yes
 Fuse Protection  Yes (Externally Accessible)
 Spare Fuse Provided  Yes
 Switching Element  MOSFET
 Efficiency  Up to 95%

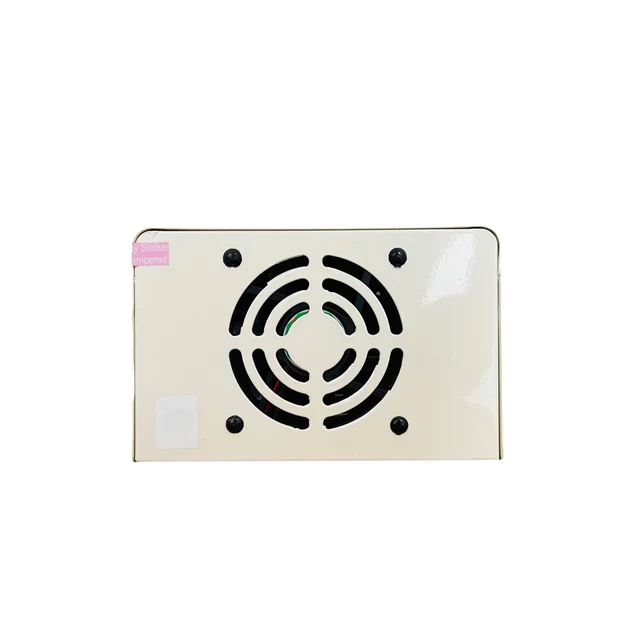

 Cooling  Fan (Forced Air Cooling for Longer Life)
 Connection  Bakelite Screw Terminal
 Mounting Type  Wall Mounted
 Temperature  0˚C TO 55˚C
 Product Dimensions (L*W*H)  18*16*10 CM
 Packaging Dimensions
 (L*W*H)
 22*22*14 CM
 Weight  1.5 Kg
 Warranty   1 Year
 Manufacturer   MSV Electronics Pvt. Ltd. Ghaziabad, U.P.
 Country of Origin   India
