MSV DC Load Control 12/24V MPPT Solar Charge Controller

Model No.
OD-MPPT-SCC-LOAD-12/24-50/25

Technology
MPPT

Product Series
OD-MPPT-SCC-LOAD

Battery Operating Mode
12V/24V

Solar Panel Capacity
400W (12V Battery)
800W (24V Battery)

Solar VOC (Voltage Open Circuit)
18V- 50V  (for 12V Battery)
36V- 50V  (for 24V  Battery)

Load Disconnect Voltage
10.5V/21.6V

Load Reconnect Voltage
12.6V/25.2V

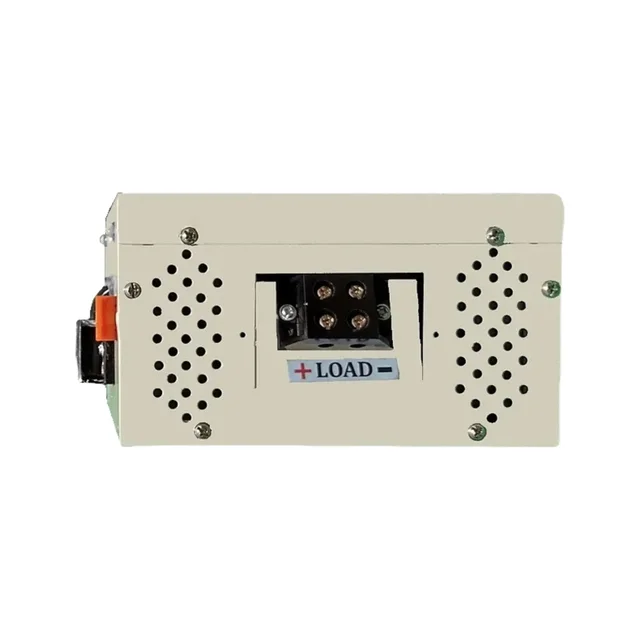

Load Power
150W

Load Current
10A

Battery Type
Lead Acid (Tubular/SMF), (Lithium PO4 Available on Demand)

Self-Power Consumption
<2W

Max Charging Current
25A

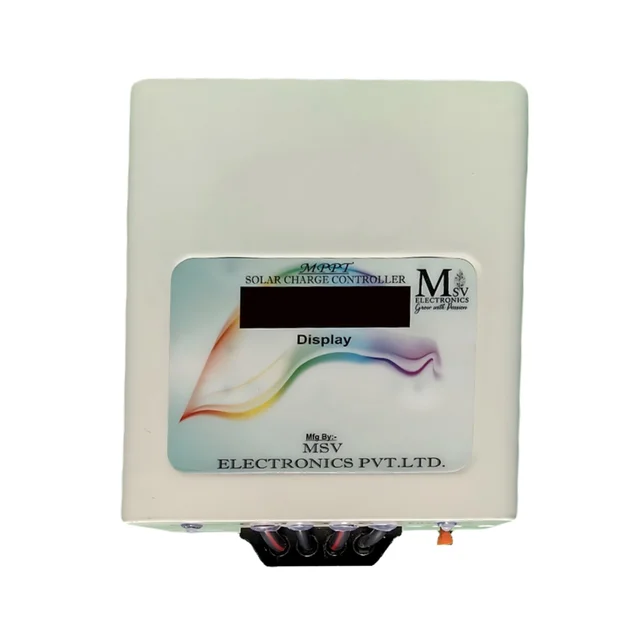

Display
16x2 Character

Display Parameters
Solar Voltage (Vsol), Solar Current (Isol), Solar Power (SolPWR), Battery Voltage (Vbat), Charging Current (Ichg), Solar Panel Generated Unit

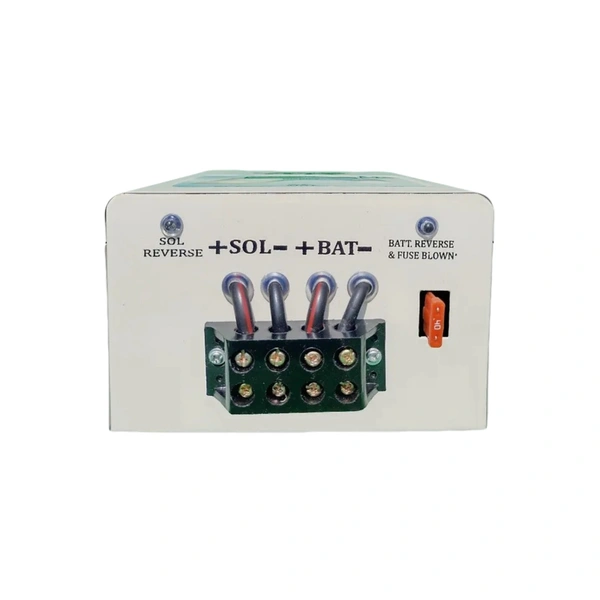

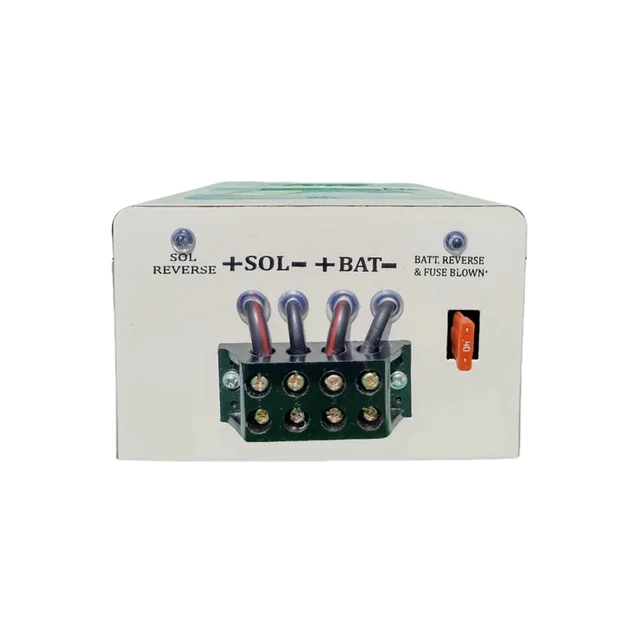

Indications
Reverse, Battery, Reverse/Fuse Blown

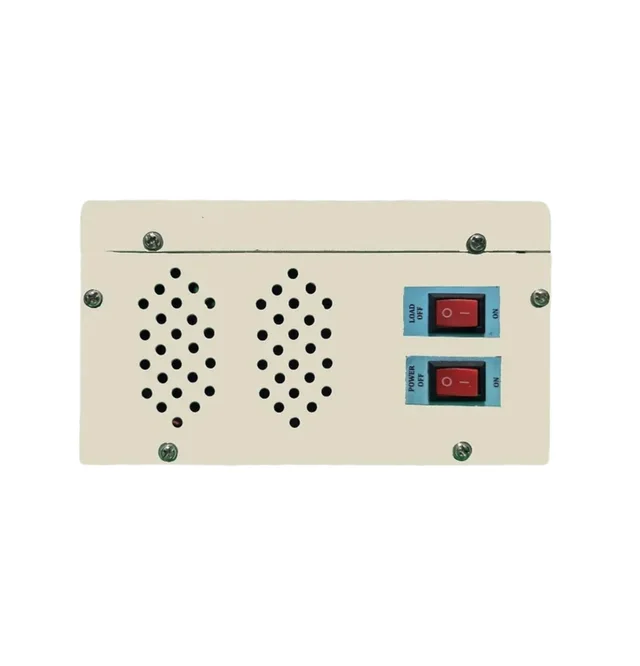

Switch
Power ON/OFF

Solar Reverse Current Protection
Yes

Battery Reverse Protection
Yes (1 Fuse)

Fuse Protection
Yes (Externally Accessible)

Spare Fuse Provided
Yes

Switching Element
MOSFET

Efficiency
95%

Cooling Fan
(Forced Air Cooling) with adaptive Controlling for Longer Life. Fan turns on once the Charging Current goes above 6A and turns off when it goes below 4A.

Connection
Bakelite Screw Terminal

Mounting Type
Wall Mounted

Temperature
0˚C TO 55˚C

Product Dimensions (L*W*H)
18* 16* 10 CM

Packaging Dimensions (L*W*H)
22* 22* 14 CM

Weight
1.540Kg
