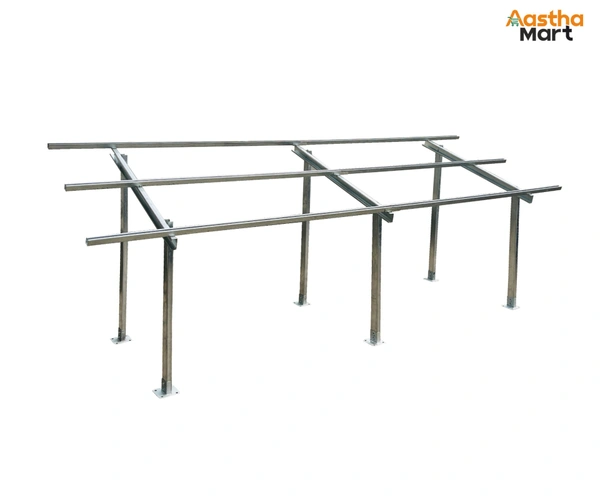

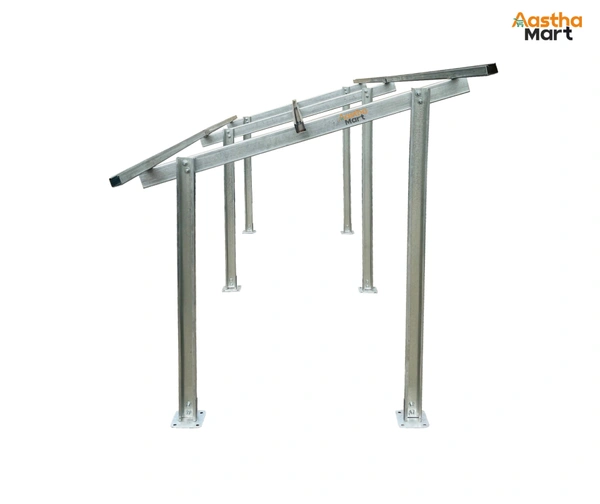

Hot Dip G.I. 4 Solar Panels Mounting Structure

The Hot Dip G.I structure is much better than Pre G.I. structure. This Solar Panel Mounting Hot Dip G.I. Structure 15x40x80x40x15 with 2 mm thickness is specifically designed for 4 panels with a power range of 300-630W. This sturdy and durable structure is made from high-quality galvanised iron, ensuring long-lasting performance and protection against corrosion. It will support 335W, 450W, 540W, 630W 4 panels.

• This Hot Dip G.I structure product life is up to 25-30 Years without rust.
• 3 purlins for extra protection from heavy wind. U-channel 3 purlins will prevent panels from cracking. The mounting structure is designed to securely hold and position the solar panels, maximising their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customisation according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting Hot Dip G.I. Structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot Dip G.I End Clamp & middle clamp, SS Allen bolt. 10mm bolt fasteners and heavy plain washers.
• Easy to install with all accessories.
• Tilt Angle 18-21 degree


Package Details

Hot Dip G.I. C Channel (15x40x80x40x15x2mm)
Front Leg, 36 Inch, 3 No.
Back Leg, 50 Inch, 3 No.
Rafter 63 Inch 3 No.

Hot Dip G.I. U Channel (40x40x40x2mm)
Hot Dip G.I. Purlin (Support) 96 Inch 6 No.
Purlin Jointer 3 no.
G.I. Base Plate, 5 mm, 6 No.
Hot Dip G.I End (Z) Clamp 6 No.
Hot Dip G.I. U Mid (U) Clamp 9 No.
G.I. Spring Nut 15 No.
SS Allen bolt, 40 mm, 15 No.
SS Nut and Bolt 10x25mm 25 No.

G.I. nut and Bolt 10*25mm 19
G.I. Plain Washer 63 No.
Fixy Fasteners 10mm 25 No.
T-handle L key 6mm 1 No.
Approx. Weight 77 kg

Manufactured & Packed By:
Aastha Power Solution
# 5, Near Hocky Stadium
RK Puram to Kailash Road
Karnal, Haryana Pin 132001
M. 98134-34999
     98124-34999
contact@aasthamart.com

Country Of Origin
Bharat

Note:-

Due to regular product and design updates, the actual design can be somewhat different as shown in the picture.
