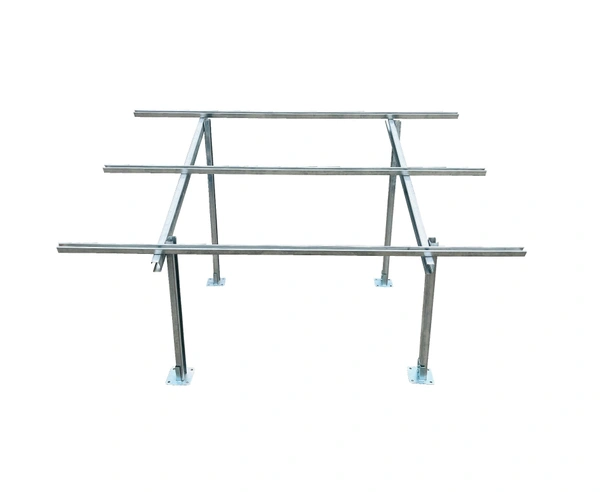

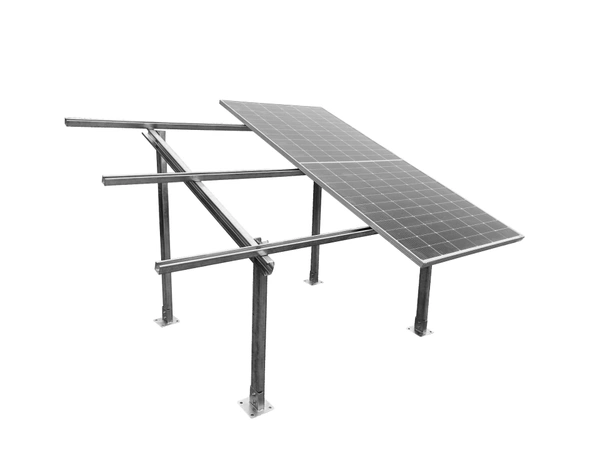

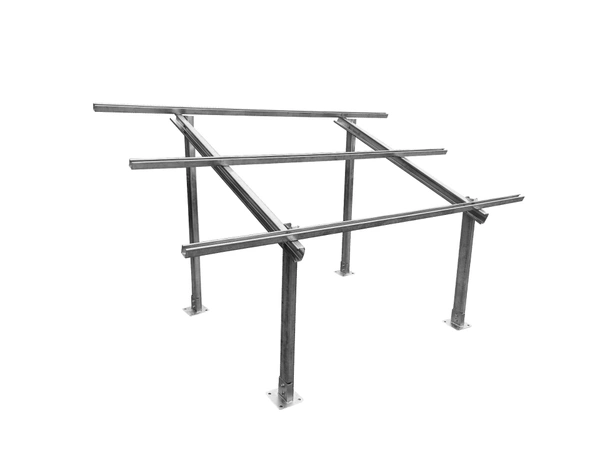

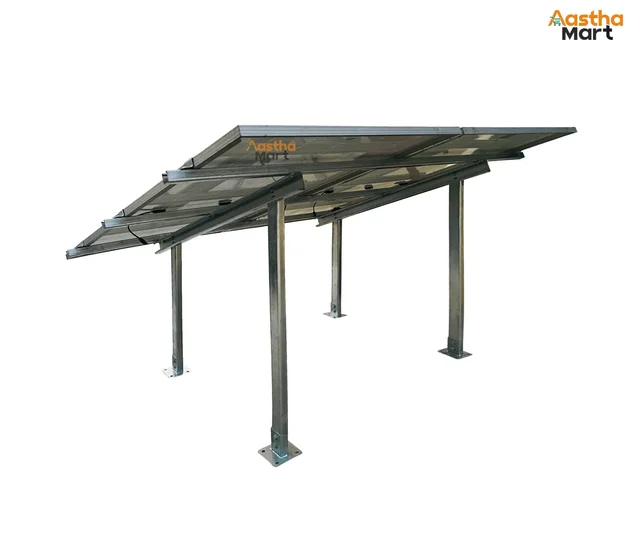

Hot Dip G.I. 2 Solar Panels Mounting Structure

The hot-dip G.I. structure is much better than the pre-G.I. structure. This Solar Panel Mounting Hot Dip G.I. Structure 15x40x80x40x15 with 2 mm thickness is specifically designed for 2 panels with a power range of 300-630 W. This sturdy and durable structure is made from high-quality hot-dip galvanised iron, ensuring long-lasting performance and protection against corrosion. It will support 335W, 450W, 540W, and 630W 2 panels.

• This hot-dip galvanised structure product lasts for long years without rust.
• 3 purlins for extra protection from heavy wind. U-channel 3 purlins will prevent panels from cracking. The mounting structure is designed to securely hold and position the solar panels, maximising their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customisation according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting Hot Dip G.I. structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot-dip galvanised iron end clamp & middle clamp, SS Allen bolt. 10mm bolt fasteners and heavy plain washers.
• Easy to install with all accessories.
• Tilt Angle 18-21 degree


Package Details

Hot Dip G.I. C Channel (15x40x80x40x15x2mm)
Front Leg, 36 Inch, 2 No.
Back Leg, 50 Inch, 2 No.
Rafter, 63 Inch, 2 No.

Hot Dip G.I. U Channel (40x40x40x2mm)
Purlin (Support), 96 Inch, 3 No.
G.I. Base Plate 4 No.
Hot Dip G.I. End (Z) Clamp 6 No.
Hot Dip G.I. U Mid (U) Clamp 3 No.
G.I. Spring Nut 9 No.
SS Allen bolt, 40 mm, 9 pcs.
Nut and Bolt, 10x25mm, 23 No.
G.I. Plain Washer 63 No.
Fasteners: 10 mm, 16 No.
T-handle L key, 6 mm, 1 no.
Approx. Weight: 45 kg

Manufactured & Packed By:
Aastha Power Solution
# 5, Near Hocky Stadium
RK Puram to Kailash Road
Karnal, Haryana Pin 132001
M. 98134-34999
     98124-34999
contact@aasthamart.com

Country Of Origin
Bharat

Note:-

Due to regular product and design updates, the actual design can be different, as shown in the picture.
