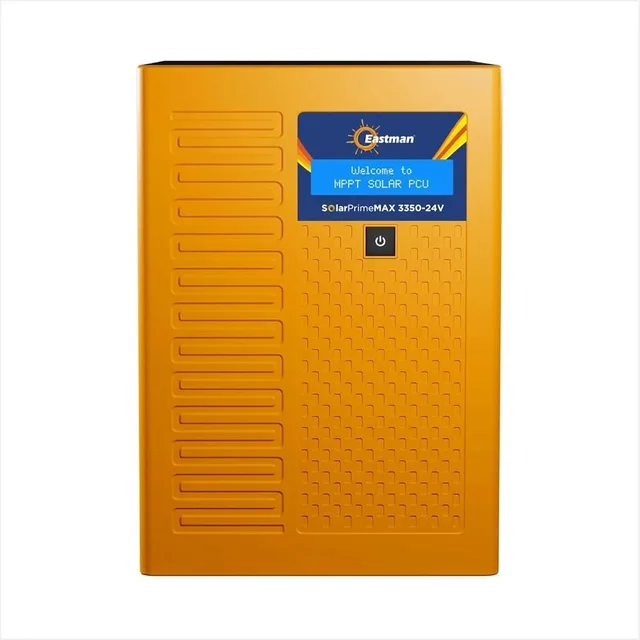

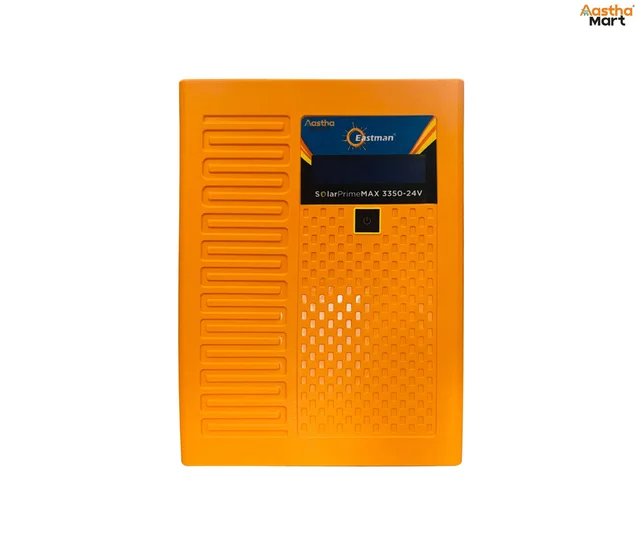

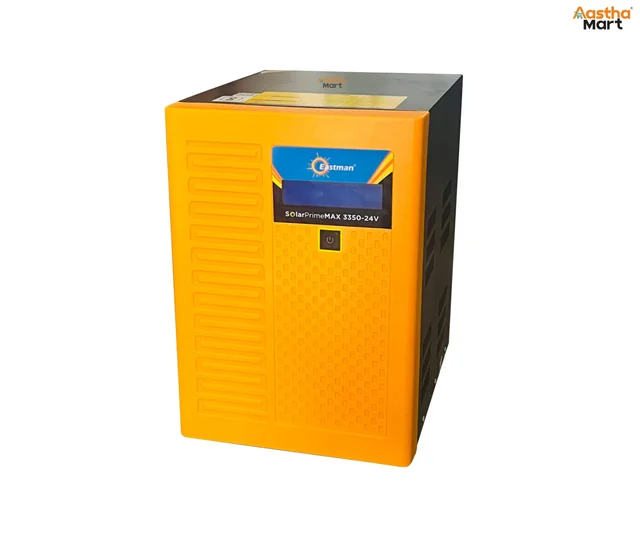

Eastman Solar Prime Max 3350 3KVA 24V MPPT Solar PCU
- Genuine Quality
- Free Shipping
- Secure Checkout
Eastman Solar Prime Max uses (Maximum Power Point Tracking) (MPPT) technology – the most advance method of extracting maximum energy from solar
MPPT continuously optimises solar panel output, delivering significantly more efficiency than PWM – especially on cloud days or during early morning and late evening hours.
The 36 months (3 years) provide reliable after-sales assurance and reflect Eastman's commitment to delivering durable and dependable solar energy solutions.
The Solar Prime Max 3350 3000VA 24V MPPT Solar Pure Sine Wave PCU Comes with Great Exciting Features:
- Pure Sine Wave output
- Grid Charging Enable/Disable
- Lithium, Lead-Acid and Tubular Battery support
- Low-loss MPPT charger Technology
- 3540 watts panel support (600*6 Panels)
- VOC 36-105V
- Solar Controller 100A ±6A
- Maximum utilization of Solar power
- 3 Working Modes – Intelligent, Hybrid & Solar
- Auto Selection of Grid Reconnect Battery Voltage
- Isolated Communication and Monitoring
- Static Change Over
- Solar KWH used on Digital Display
- Solar PV reverse voltage protection.
- Electronic Overcurrent Charging Protection
Advanced technology makes this true MPPT-based PCU with a sleek and aesthetic design the most efficient & long-lasting PCU.
| Capacity | 3000VA 24V | |
| Overload PCU | 110% | |
| Battery Charging current from the mains AC | 20A | |
| AC Load Support | 2400W Bulb load When connected with 3000W Solar Power | |
| Output Voltage on Backup Mode | 230V +10%, -15% | |
| Switching from Mains to Backup & Backup to mains | Automatic | |
| Charger | CCCV | |
| Solar Panel Support | Up to 3540W | |
| Solar VOC | 36 to 105 V | |
| Warranty | 3 Years | |
| Country of Origin | Bharat | |
| Manufacturer | Eastman Auto & Power Ltd, ASF Tower-A, Plot No.249 E, Udyog Vihar Phase- IV, Gurugram - 122016 |
