Ashapower

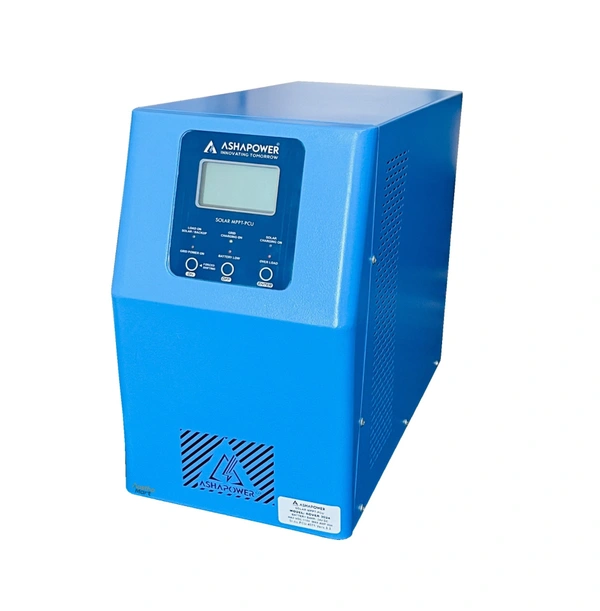

Ashapower Rover 5248 LV 5.2KVA 48V Copper MPPT Solar PCU

4.3Star
Ratings

₹ 52,900 / Piece

₹ 60,000

12%

Whatsapp
Facebook
You will earn 529 points from this product

Ashapower Rover 5248 LV SOLAR PCU 48V 5.2KVA 60AMP. It is a powerful budget friendly solar energy extractor for home/office for iron box, rice cooker, computers, washing machine, refrigerator, laser printer, 1.5 ton AC and a 2 HP Submersible  pump when used with 5000 watts solar PV panels and 48V/200Ah batteries.
Inbuilt with highly efficient MPPT Solar charge controller 185 VOC 60 AMP andhigh power grid charger makes it unique in its class.

High power inverter and MPPT integration
185 VOC - 60Amp Solar controller with 5000 Watt Panel support

High over load and surge load handling capacity
Trouble free running of loads with initial input surge. AC Load capcity is 4160W. Inverter combination assure continuous day time heavy load operation without disturbing batteries.

High grade CRGO laminated Copper Transformer
Better Efficiency and high performance

Large 4 Line multifunctional LCD display
Gives detailed and clear system information at a look

Grid charging ON/OFF
Blocks battery charging from grid power saving electricity

3 Soft front panel switches for all function control
Easy system control and function settings

All types battery support
Lithium LiFePO4 with BMS, Lead Acid, SMF and GEL batteries support

Standby Zero grid power consumption
Once the battery is fully charged grid isolation ensures standby zero grid power consumption & saves electricity

Constant noise free DSP pure sine wave output
Ensures best life and flicker free working of digital equipment.

No rocker switches behind the device
Smart front panel hassle free function and settings control

Intelligent true multi stage smart solar charging
Bulk. Absorption, Float (User selectable battery charging voltage)
Ensures prolonged battery backup and life

Battery charges even at low grid voltage
Suitable for places with low grid voltage areas

Customizable solar and grid priority modes
we can set as to the power conditions of the site.

Self controlled grid to solar/solar to grid changeover facility



Solar Panel Support  5200W
Solar Panel VOC and Current 185V  60A
Solar Charging Current  60A (Selectable)
Maximum MPPT Tracking Efficiency 98.9%
AC Load Support  4160W
  .
Inverter Power factor 0.8
Maximum Grid Battery Charging Current 4A to 15A (Selectable)
Transformer Winding High Grade CRGO Laminated Pure Copper Transformer
Overload Protection From PV Panel Yes
Over Charge Protection from grid and solar Yes
Panel Reverse Polarity Protection Yes
Display 4 Line LCD




What's in the Box Solar PCU, Product Manual, Battery Jumper
Warranty  3 Years
Country of Origin Bharat
Dimension  48x26x40CM
Product Weight 41KG
Manufacturer  ASHAPOWER PRIVATE LIMITED 16/404-H, ASHAPOWER TOWER, Kondotty-Areekode Main Rd, Kizhisseri, Kuzhimanna PO, Malappuram DIST - 673641
