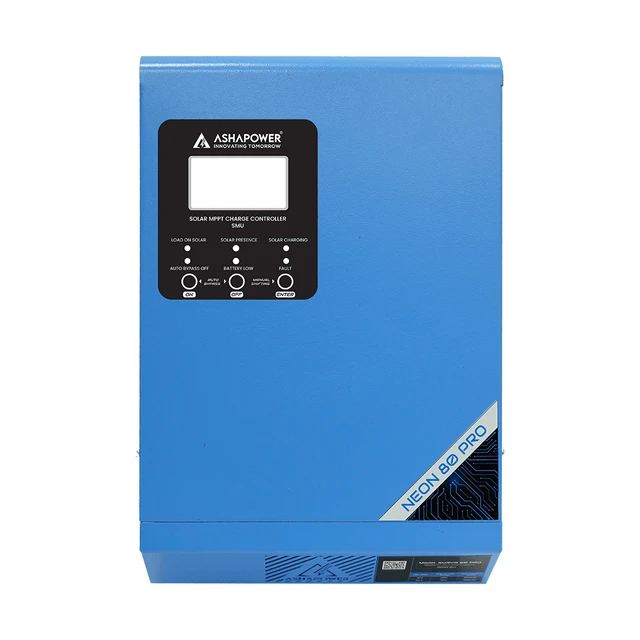

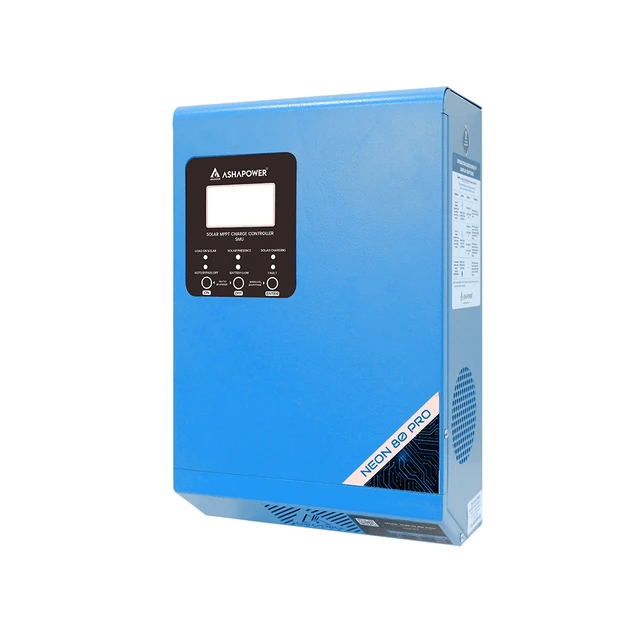

Ashapower Neon 80 Pro 12/2436/48V 80A MPPT Solar Charge Controller SMU Vers.9.3

The ASHAPOWER NEON-80 Pro Solar MPPT Charge Controller is designed to charge 12/24/36/48V batteries with automatic battery bank detection and configuration. It supports all popular solar panels such as polycrystalline, monocrystalline, half-cut mono PERC and Topcon, making it highly versatile. With its wide PV input VOC range, more panels can be connected in series, ensuring flexible and simplified installation. The NEON-80 Pro also comes with advanced features like separate current control for batteries and the load, a unit (kWh)-based solar-to-grid changeover, and a battery rescue charging function for deeply discharged LiFePO₄ batteries. It is fully compatible with lead-acid, VRLA, gel, and lithium batteries equipped with a good BMS and active balancer.

• Advanced Discrete current control feature to connected batteries and load
• Unit (kWh)-based solar-to-grid changeover feature
• Battery rescue charging feature for deeply discharged LiFePO4 batteries from solar current
• Battery cell number-wise selection feature for charging Lithium ferrophosphate batteries
• Battery number-wise selection feature for charging lead-acid batteries
• Compatible for 12/24/36/48V battery bank
• Auto-detection and self-setting of battery bank
• 4-stage smart charging for prolonged battery life (bulk-absorption-float-equalisation)
• Programmable initial limited-ampere battery charging facility
• Ultra-fast & efficient power point tracking (98.9%)
• dsPIC33EP family microcontroller-based devices
• PV panel reverse polarity protection
• Overvoltage and overload protection from PV panels
• Protection for battery against hardware failures
• 25 menu user-programmable function settings and inbuilt settings keys
• Grid power control to the connected inverter (SMU-Solar Management Unit)
• Forced grid-to-solar shifting facility
• Multifunction status display



  Solar Panel Support

  12V Battery
  VOC 120V
  Panel Support  2000W

  24V Battery
  VOC 165V
  Panel Support  3600W

  36V Battery
  VOC 180V
  Panel Support  4400W

  48V Battery
  VOC 210V
  Panel Support  6000W





  Product Dimesions	34.5x21.3x14.2 CM
  Product Weight	3.5 KG
  Country of Origin	Bharat
  Warranty	2 Years
  Manufacturer	AshaPow
