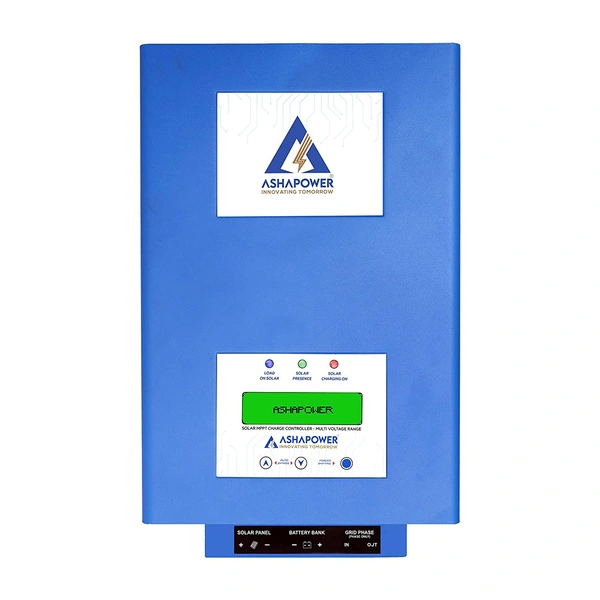

Ashapower Neon 80 12/24/36/48V 80A MPPT Solar Controller SMU (Ver. 9.1)

• Compatible for 12V/24V/36V/48V Battery bank (Auto-Volatage Detection) and The device gives a configurable charging current up to 80 Ampere (Voc: up to 210V)
• 4 stage Smart charging for prolonged battery life. (Bulk- Absorption- Float-Equalisation)

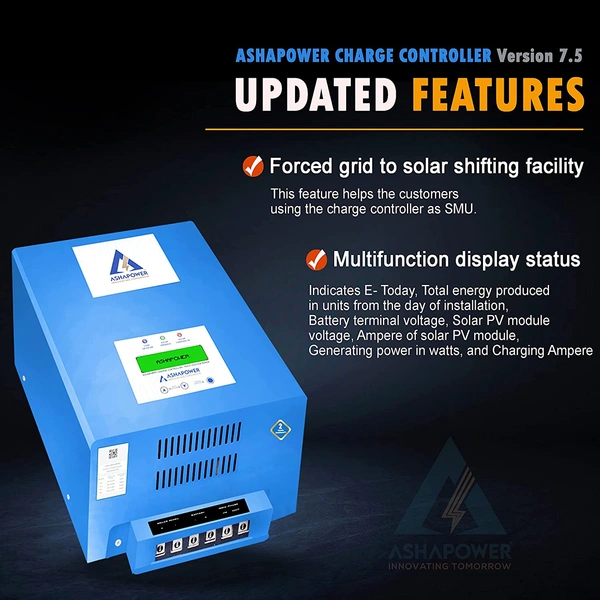

• MULTIFUNCTION DISPLAY STATUS: E-today, Total Units, Battery voltage, Solar PV Module Ampere, Solar PV Module Voltage, Generating Power in Watts and Charging Ampere
• PROTECTIONS PROVIDED: Over voltage,over charging, overload and reverse polarity protection from PV panels

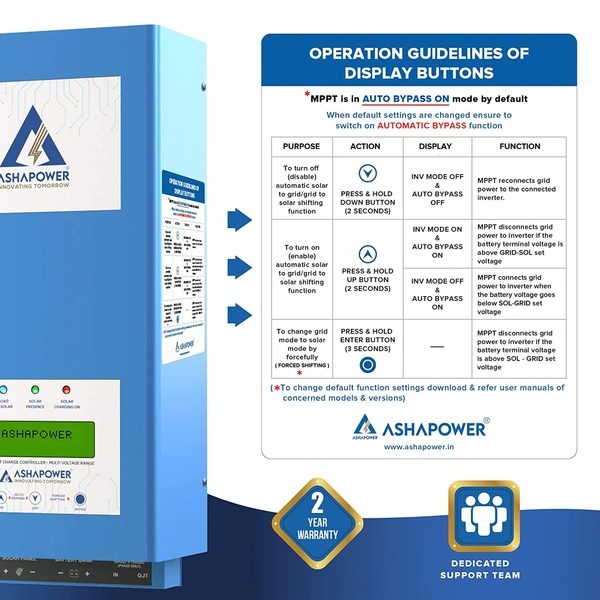

• FORCED GRID TO SOLAR SHIFTING FEATURE: This feature helps converting a normal inverter to solar inverter) When connected battery voltage is at low level (after sunset or in dim sun light) a sudden heavy load connected on inverter drops the battery voltage below the preset solar to grid changeover volt and the charge controller shifts the connected inverter load to grid power. It will only be shifted back to solar mode automatically the very next day when battery is fully charged.

Solar Panel Support on 12V Battery Bank
If VOC< 120V = 2000W


Solar Panel Support on 24V Battery Bank
If VOC< 165V =  3200W


Solar Panel Support on 36V Battery Bank
If VOC< 180V = 4400W


Solar Panel Support on 48V Battery Bank
If VOC< 210V = 6000W
