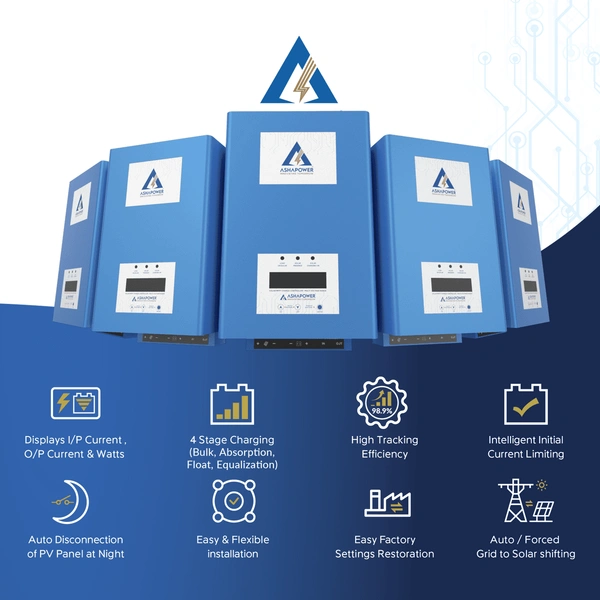

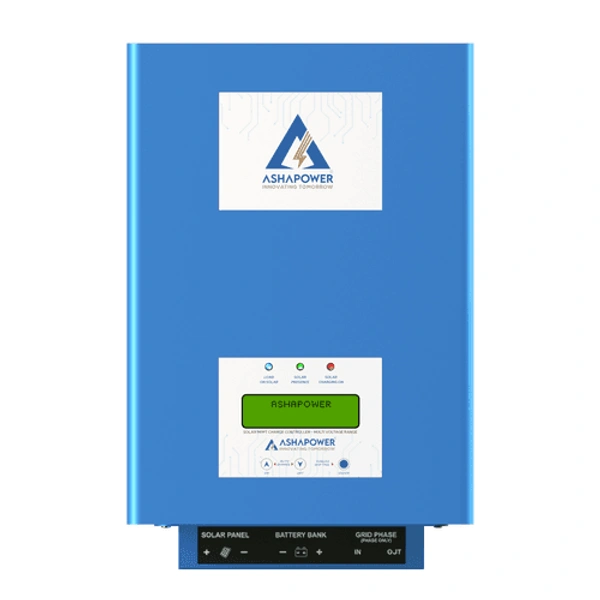

Ashapower Neon 70 12/24/36/48V 70A MPPT Solar Controller SMU (Ver. 9.1

ASHAPOWER®️ NEON-70 Solar MPPT Charge Controller can be used for charging 12V,24V,36V and 48V batteries. The device detects and configures the battery bank automatically. It supports all types of solar panels(12V/24V) available in the market.
Despite being the starting model, NEON-70 is loaded with all unique features available on ASHAPOWER®️ Solar MPPT Charge Controllers like Initial Limited Ampere Charging, True 4 Stage Smart Charging (Bulk-Absorption-Float-Equalization), etc. It is compatible for batteries like Lead-acid, VRLA, Gel type, and Lithium battery with good BMS and Active Balancer. Compatible for 12V/24V/36V/48V Battery bank (Auto Voltage Detection). The device gives a configurable charging current up to 70 Ampere (VOC up to 210V)

• MULTIFUNCTION DISPLAY STATUS: E-today, Total Units, Battery Voltage, Solar PV Module Ampere, Voltage, Generating Power in Watts and Charging Ampere
• PROTECTIONS PROVIDED: Over voltage,over charging, overload and reverse polarity protection from PV panels

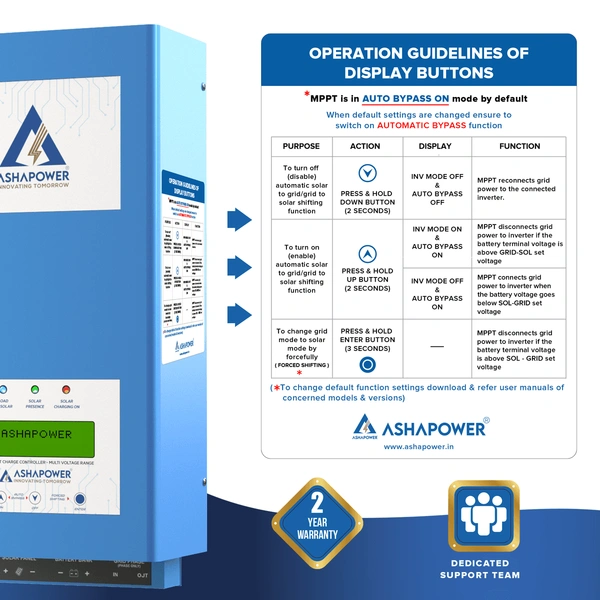

• FORCED GRID TO SOLAR SHIFTING FEATURE: This feature helps converting a normal inverter to solar inverter) When connected battery voltage is at low level (after sunset or in dim sun light) a sudden heavy load connected on inverter drops the battery voltage below the preset solar to grid changeover volt and the charge controller shifts the connected inverter load to grid power. It will only be shifted back to solar mode automatically the very next day when battery is fully charged.

Solar Panel Support on 12V Battery Bank
VOC 120V = 1300W

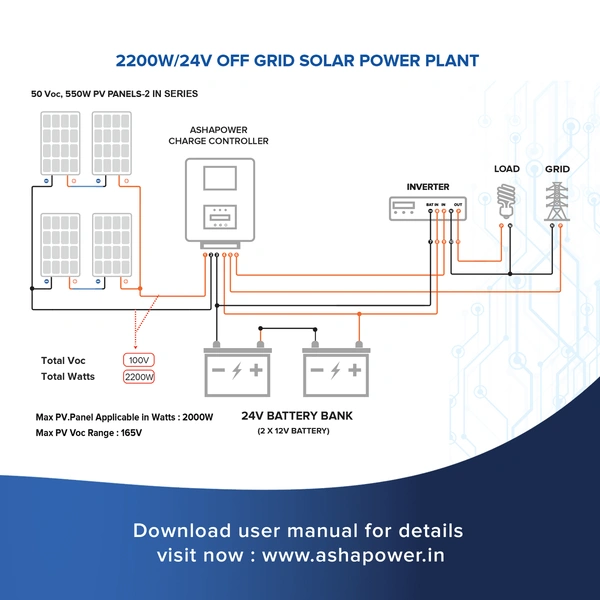

Solar Panel Support on 24V Battery Bank
VOC 165V = 2100W

Solar Panel Support on 36V Battery Bank
VOC 180V = 3100W

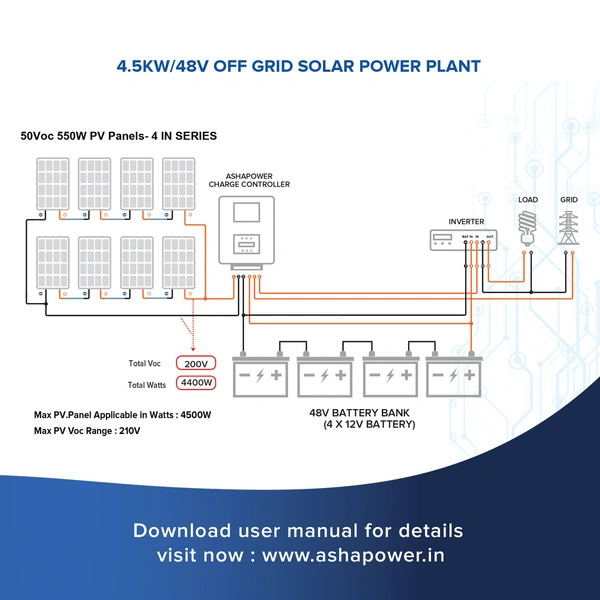

Solar Panel Support on 48V Battery Bank
VOC 210V = 4500W
