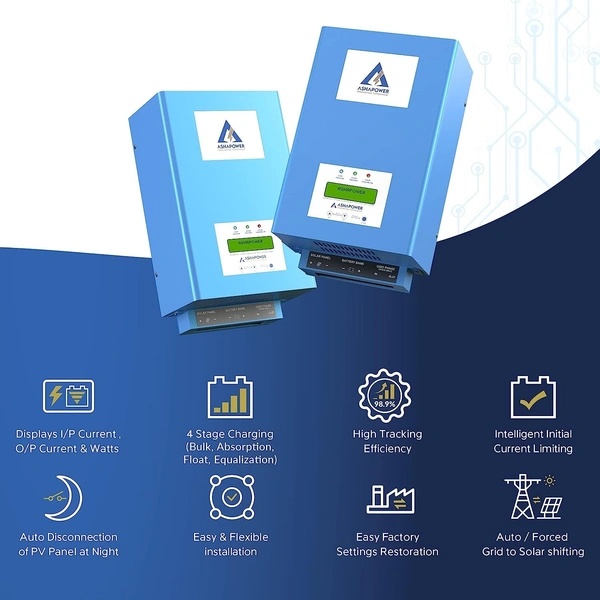

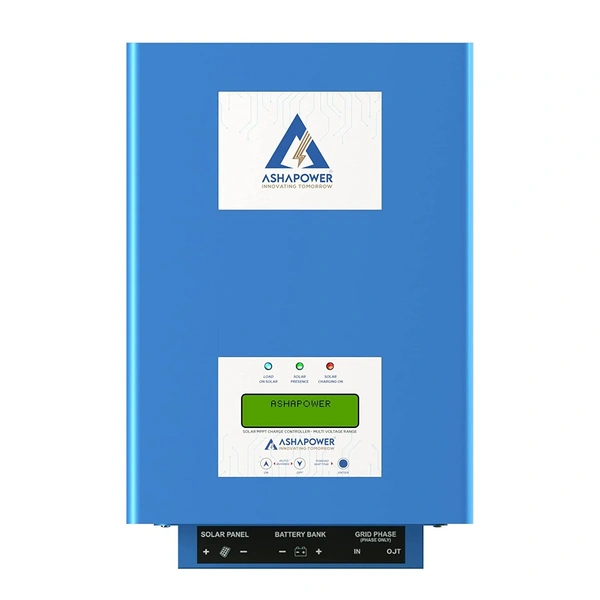

Ashapower Neon 50 12/24/36/48V 50A MPPT Solar Controller SMU (Ver. 9.1)

• Compatible with a 12V/24V/36V/48V battery bank.
• Auto-detection and self-setting of the battery bank.
• 4-stage smart charging for prolonged battery life (bulk-absorption-float-equalisation)
• Programmable initial limited-ampere battery charging facility.
• Ultra-fast & efficient power point tracking (98.9%).
• 16 menu user-programmable function settings and inbuilt settings keys
• Grid power control to the connected inverter (SMU-Solar Management Unit)
• Forced grid-to-solar shifting facility
• Multifunction status display.
• dsPIC33EP family microcontroller-based devices,
• PV panel reverse polarity protection
• Automatic disconnection of PV panels at night
• Overvoltage and overload protection from PV panels

Solar Panel Support on 12V Battery Bank
VOC 120V,  1200W


Solar Panel Support on 24V Battery Bank
VOC 165V,   2200W


Solar Panel Support on 36V Battery Bank
VOC 165V,  3200W


Solar Panel Support on 48V Battery Bank
VOC 210V,  3800W
