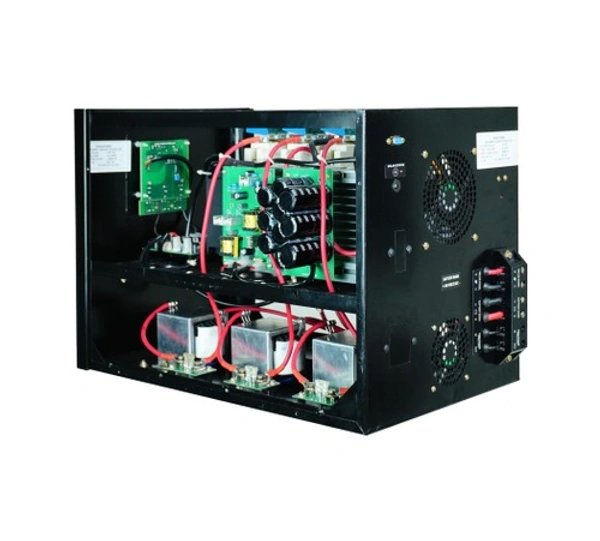

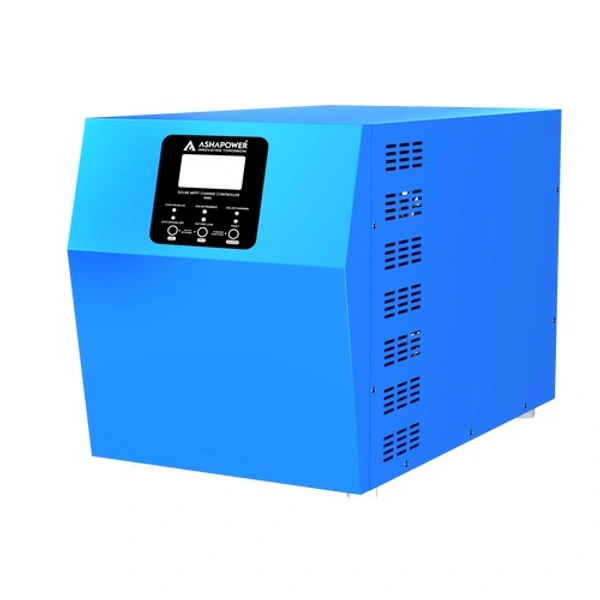

Ashapower 120V 60A IGBT MPPT Solar Charge Controller SMU

• High VOC and PV Panel Input Capacity

• IGBT Based Heavy Duty Hardware.

• 4 stage smart charging for prolonged battery life
(Bulk - Absorption - Float - Equalization)

• Programmable Initial limited ampere battery
charging facility

• Ultra-fast & efficient power point tracking (98.9%)

• dsPIC33EP family micro controller based devices

• PV panel reverse polarity protection

• Automatic disconnection of PV panels at night

• Over voltage and overload protection from PV panels

• Protection for battery against hardware failures

• 17 menu user programmable function settings and
inbuilt settings keys

• Grid power control to the connected inverter
(SMU-Solar Management Unit)

• Forced grid to solar shifting facility

Nominal Battery Voltage 120V Max.

PV Panel Input Applicable 8000W

Max. Open Circuit Voltage (VOC) 500V

Maximum output Charging Current  60A

Battery charging stages Bulk Absorption Float Equalization

Maximum Tracking Efficiency 99%

Standby Power Consumption <2W

Overload Protection From PV Panel Yes

Over Charge Protection Yes

Panel Reverse Polarity Protection Yes

Battery Reverse Polarity Protection No

Dimensions – L x W x H (cm) 56x30.5x38

Net Weight (Kgs) / Gross Weight (Kgs) 30KG/ 32KG

Display 4 x 16 LCD display

Note: Dispatch Time is 7-10 Days
