UTL Solar Power Generating System (540W Bifacial Half cut Solar Module - 4 No., Gamma+ 3350 Li-ion 3KVA 24V MPPT Solar Lithium PCU, UTL 25.6V 100AH Lithium PO4 Battery

Solar Combo Includes:

1. UTL 540W Bifacial Half Cut Solar Panel 4 No.
2. UTL Gamma+ 3350 Li-ion 3KVA 24V MPPT Solar Lithium PCU
3. UTL 25.6V 100AH Lithium PO4 Battery 5 Years Warranty

This Solar Combo is Ideal for Small Homes which are 1-2BHK. and office or shop. Your full house hold load will run on this Inverter using Solar Power during day time and at night you will get your Backup from 100Ah Lithium PO4 Battery.

Solar Panel

UTL solar panels are the latest technology and most innovative solar panel. A solar photo-voltaic panel is a composition of solar voltaic cells, well-arranged together in an aluminium frame and covered with high quality glass. They absorb the sun’s ray and turn them into electricity that can be fed in home appliances as well as utility grids. UTL solar panel are next-generation solar panels, manufactured by using premium quality A-grade solar cells. These solar cells are slice cut from a block of silicon, consisting of a number of crystals with a speckled reflective appearance. The thickness of these slices is clearly visible. Our mono solar panel 540 watt is a very economical solar product and are more suitable for Indian environmental conditions. Half Cut Cell

• Half Cut Cells
  Half Cut Cells are More Physically durable,
  More resistant to cracking reduce Power Loss
  increase module efficiency (mono- perc up to 20.95 %)
• MBB instead of 9BB/10BB MBB
  Technology decreases the distance between bus bars and
  finger grid line which is benefit to power increase.
• Higher lifetime power yield
  2.0% first year degradation,
  0.55% linear degradation
• Strengthened Mechanical Support
  5400 Pa snow load, 2400 Pa wind load

Solar PCU

UTL Gamma+ Li-ion 3 KVA 24V rMPPT Solar Pure Sine Wave PCU Comes with Great Exciting Features:

★Multi Coloured LCD Display shows PCU Working Parameters

★Grid Charging Enable/Disable

★Inverter and UPS Mode (For IT Load)

★PCU, Hybrid and Smart Modes

★ Lithium Battery Support

Advanced Technology makes this True MPPT based PCU with Sleek and aesthetic Design makes it the most efficient and Long lasting PCU.

This PCU is designed to maximize the use of Solar Power. When the batteries are charged from Solar the PCU Disconnects Grid/Mains & let the Load run on Solar. Also, as per the User Preferences it has three modes:

1. SMART (Default) – (Solar>>Battery>>Grid) where Power Cut is less than two Hours

2. PCU – (Solar>>Battery>>Grid) Recommended for Rural or Village area to save Battery Backup for Night

3. Hybrid - Load/Grid>>Solar>>Battery

3 Stages Battery charging to Maintain Maximum Battery Health (Boost, Absorption, Float)

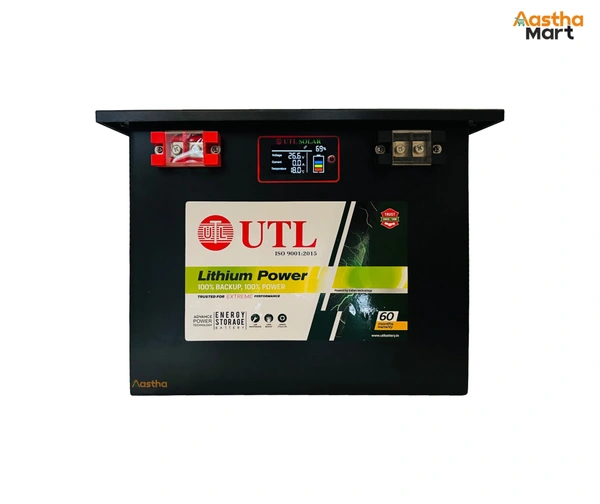

Lithium Battery

The UTL Lithium Battery, energy storage technology with its robust design and exceptional performance. This 25.6V 100AH Lithium PO4 battery is engineered for reliability and longevity, making it an ideal choice for a Inverter Battery. With a remarkable five-year warranty, users can trust in the durability and efficiency of this power unit, ensuring peace of mind and optimal energy management. Its compact size and lightweight construction further enhance its versatility, allowing for easy installation and transport, while the advanced lithium iron phosphate chemistry guarantees enhanced safety and a longer cycle life compared to traditional lead-acid batteries

Model
ULIBES-25.6V100AH-LP100-SM

Max Discharge Current
80Amp

Peak Discharge Current
95Amp < 10ms

Max Charging Current
45Amp

Lower Cut off Voltage
21.5V

Upper Cut off Voltage
29 V

LCD Display Parameters
✦Battery Voltage
✦Discharging and Charging Current
✦Battery Temperature

Charge Method
CC-CV

Operating temperature
 10°C - 50°C

Orientation
Table Top

Product Dimensions
44x24x32 CM

Product Weight
30.1 KG

Country of Origin
Bharat

Manufacturer
Fujiyama Power Sytems Pvt. Ltd.
53A/6 Rama Road, Industrial Area, Near NDPL Grid Office, New Delhi - 110015
