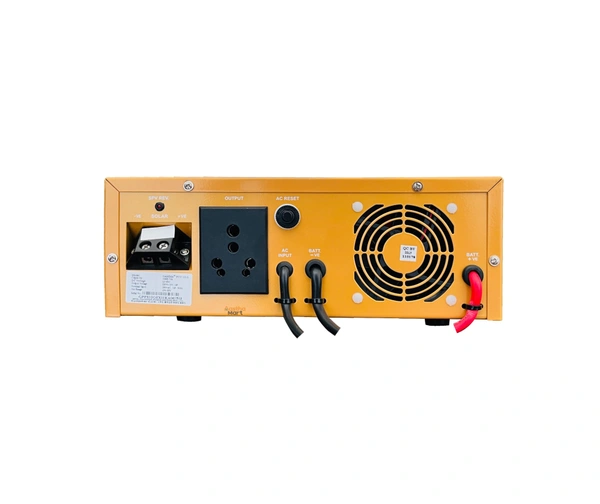

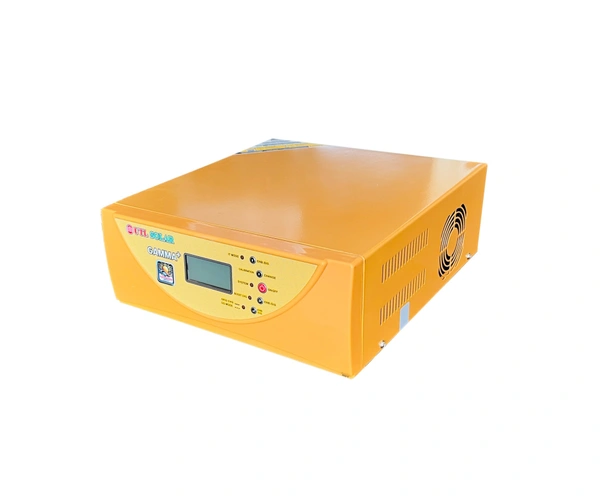

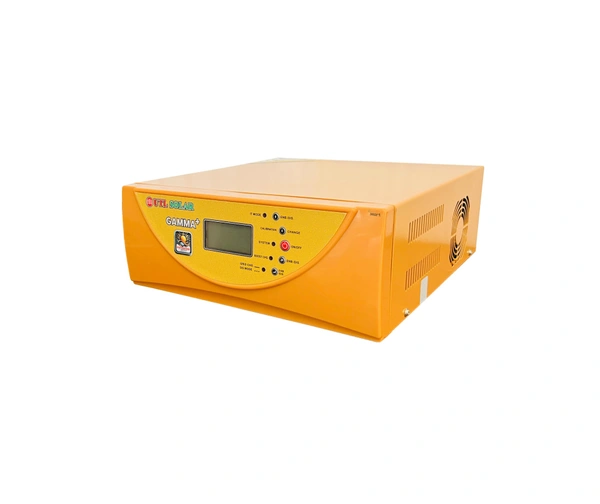

UTL Gamma Plus 1KVA 12V 40A MPPT Solar PCU

UTL Off Grid 1 KVA 12V rMPPT Solar Pure Sine Wave PCU Comes with Great Exciting Features:

● Controller-based Design, Pure Sine Wave with 100% Tracking of Solar Panel, Built in r-MPPT Charge Controller.
● Multi Color LCD Display.
● All Parameters Selected.
● Lithium PO4, Lead Acid & Tubular Battery Support
● Multi Charging Stage (Bulk, Absorption & Float)
● Solar Priority of Load & Battery Charging.
● Preference to Solar Power Over Grid Power.
● Pure Sine Wave Output.
● Protections: RBP, RSPV, OVL, BL, BH, Short Ckt, I/P HV & LV, OHT.
● Compatible with DG as an Input Source.
● Compatible with IT Load.
● Priority Selection – PCU, Smart & Hybrid for Saving Energy and Money.

Warranty: 3 Years


Key Features

Controller based Design, Pure Sine Wave Built in rMPPT Charge Controller

MPPT is a technique used with photovoltaic(PV) solar systems to maximize power extraction under all conditions.
rMPPT, or maximum power point tracker is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank. To put it simply, they convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.

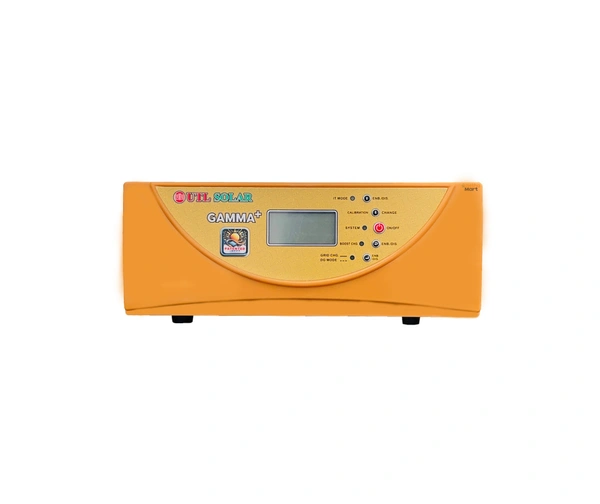

LCD Display

Gamma+ is available with LCD, for better user interface. It shows battery voltage, charging current,  output voltage , output frequency, output load percentage, Input voltage, Input frequency, solar voltage, solar current & consume solar power. It has four switches to configure Operational mode – Grid charger, IT Load, SMF/Tub, boost charging & mode selection.

User Configurable by LCD

All the parameters like battery charging voltage, battery high cut, battery low cut, battery charging current can be adjusted manually by the user as per their choice or requirement.

Charging Multi Stage (Bulk, Absorption & Float) Auto Equalize

To increase the life of battery maintain the gravity and temperature and to increase the backup of battery we use the stages of charging and equalize automatically in a month.

Compatible with DG as an input Source

The frequency of DG output is a very vital parameter that always varies. And if the system is in DG enable mode then the system will be compatible to take any of the frequency as the input source frequency.

Compatible with IT Load

IT mode is used for IT loads which provide protections to IT instruments like computers, printers etc. In IT mode the change over time is very less so that there should not any kind of breakdown in power supply.

Three Priority Modes

You can choose how you want the inverter to use power based on your needs:

• PCU Mode (Solar → Battery → Grid)​
  First it uses solar power, then battery, and lastly grid power.​
• Smart Mode (Solar → Grid → Battery)​
  First solar, then grid electricity, and finally battery if needed.​​​
• Hybrid Mode (Grid → Solar → Battery)​
  Starts with grid, then uses solar, and battery comes last.​/li>
  In all modes, the inverter charges the battery from solar power first whenever sunlight is available. That helps save on electricity bills!
